12 Fiber OM3 50/125 MPO Female to MPO Female Push Pull Tab Patch Cord
Products Description
12 Cores MPO Jumper, MPO(Female) Push Pull Tab to MPO(Female) Push Pull Tab Multimode OM3 50/125 3mm Fiber Patch Cord
MPO Fiber cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Product Paramenters
|
Connector Type A
|
MPO Female Push Pull Tab
|
Connector Type B
|
MPO Female Push Pull Tab
|
|
Wavelength
|
850/1300nm
|
Fiber Type
|
50/125 OM4
|
|
Polish Type
|
UPC to UPC
|
Minimum Bend Radius
|
7.5mm
|
|
MPO Connector IL
|
≤0.35
|
MPO Connector RL
|
≥35dB
|
|
Fiber Count
|
12 Cores
|
Cable Jacket
|
OFNR(PVC)/LSZH/Plenum(OFNP)
|
|
Jacket OD
|
3.0mm
|
||
|
Installation Tensile Load
|
66 N
|
||
|
Tensile Strength (Long/Short Term)
|
80N/240N
|
||
|
Operating Temperature (° C)
|
-10~ + 70
|
||
|
Storage Temperature (° C)
|
-40 ~ +85
|
||
|
Package
|
1PC/bag
|
||
Features: Used to connect equipment that utilizes MPO style connectors and OM4 10 Gigabit 50/125 Multimode cabling
● Type A, Type B and Type C Polarity Options available
● Each cable 100% tested for low insertion loss and back reflection
● Custom lengths and cable colors available
● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options
● Reduced Insertion Loss by up to 50%
● High Durability
● High Temperature Stability
● Good Exchangeability
● High Density design cuts down on installation costs
● Designed for 40Gig QSFP systems
MPO Female Push Pull Tab Fiber Optic patch Cord

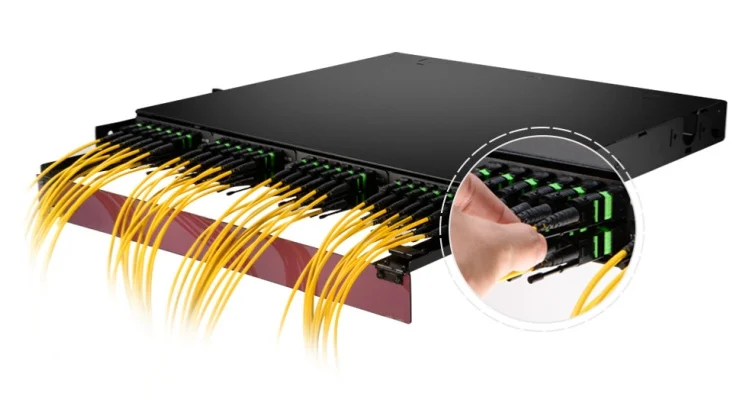

Push/pull tab connectors easy to install and remove with one hand
MPO/MTP Connector Type
MPO/MTP connector can choose Male or Female
Fiber Polarity Guidance
12 Fibers MTP/MPO Fiber Polarity
24 Fibers MTP/MPO Fiber Polarity
Manufacturing Technique
FAQ
Q1. Do you provide OEM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
