12 Fibers LC APC Fiber Optic Pigtail OS2 Single Mode 0.9mm Color-Coded Unjacketed PVC OFNR Featured Image
  • 12 Fibers LC APC Fiber Optic Pigtail OS2 Single Mode 0.9mm Color-Coded Unjacketed PVC OFNR
  • 12 Fibers LC APC Fiber Optic Pigtail OS2 Single Mode 0.9mm Color-Coded Unjacketed PVC OFNR
  • 12 Fibers LC APC Fiber Optic Pigtail OS2 Single Mode 0.9mm Color-Coded Unjacketed PVC OFNR
  • 12 Fibers LC APC Fiber Optic Pigtail OS2 Single Mode 0.9mm Color-Coded Unjacketed PVC OFNR
  • 12 Fibers LC APC Fiber Optic Pigtail OS2 Single Mode 0.9mm Color-Coded Unjacketed PVC OFNR
  • 12 Fibers LC APC Fiber Optic Pigtail OS2 Single Mode 0.9mm Color-Coded Unjacketed PVC OFNR

12 Fibers LC APC Fiber Optic Pigtail OS2 Single Mode 0.9mm Color-Coded Unjacketed PVC OFNR

Short Description:

Raw Materials: Corning Or YOFC fiber, Us kevlar

Length: Customized Length

Cable Diameter: Customized 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm

Cable Colors: Yellow or Customized

Using Life: 20 Years

MOQ: 1 PCS

Lead Time: 3 days

Country of Origin: China


Product Detail

Product Tags

Products Description

12 Fibers LC/UPC 0.9mmSingle-Mode Color-Coded Fiber Optic Pigtail

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Model Number
Fiber Pigtail
Connector Type
LC
Place of Origin
Guangdong, China
Brand
OEM/ODM
Wavelength
1310 nm/1550 nm
Fiber Mode
9/125 μm
Min. Bend Radius
10mm
Fiber Grade
G.657.A1
Fiber count:
12
Polish Type
UPC/APC/PC
Insertion loss
≤0.3dB(UPC/APC/PC)
Return loss
UPC/PC ≥50dB; APC≥60dB
Cable Jacket:
PVC/OFNR/LSZH/Plenum(OFNP)
Jacket Color
12-Color
Cable Diameter
0.9mm
Length
Customized
Interchangeability
≤0.2 dB
Vibration
≤0.2 dB
Operating Temperature (° C)
-40~ + 75
Storage Temperature (° C)
-45 ~ +85

Perfect for High Density Splicing Applications
G.657.A1 Low Loss Fiber & 10mm Min. Bend Radius, provide improved flexibility for limited space setups.

Features

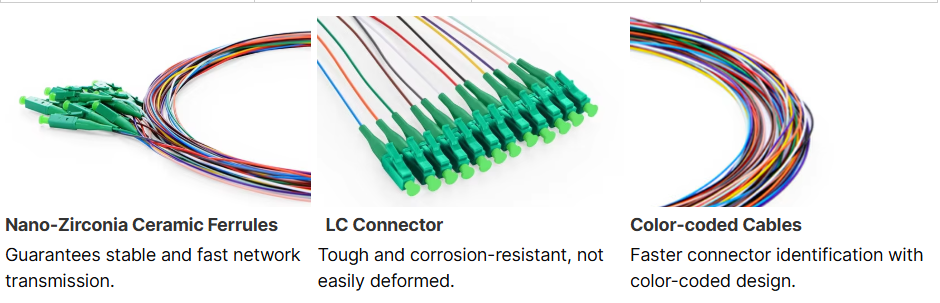

●Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss
●Connectors can choose a PC polish, APC polish or UPC polish
●Each cable 100% tested for low insertion loss and Return loss
●Customized lengths, Cable Diameter and Cable colors available
●OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options
●Tight buffer for easy fusion or mechanical splicing.
●0.9mm cable for high density splicing applications.
●Singlemode/Multimode(OM1/OM2/OM3OM4/OM5) are for your choice.
●LC/SC/ST/FC/E2000...etc connectors are available.

Supply Ability

Supply Ability：2000 Piece/Pieces per Day

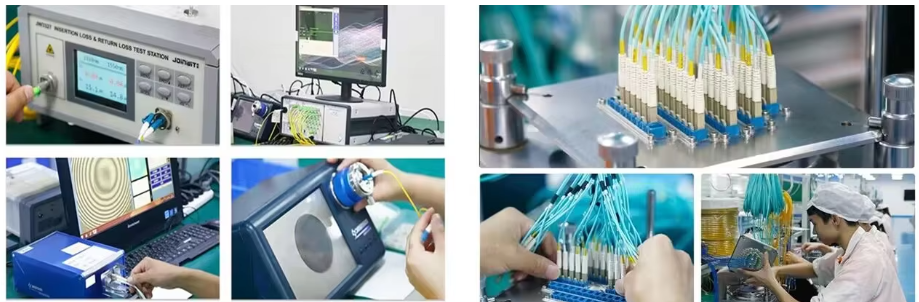

Manufacturing Technique
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?

Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?

We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
