12 Fibers MTP Female to MTP Female OM4 Multimode Plenum OFNP Cable
Products Description
OM4 MTP/UPC Female to MTP/UPC Female 12 Fibers Optical Patch Cord
MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles, MTP Female to MTP Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.
Product Paramenters
|
Connector Type
|
MTP/Female to MTP/Female
|
Fiber Type
|
50/125 OM4
|
|
Wavelength
|
850/1300nm
|
Fiber Count
|
12 Fibers
|
|
40/100G Ethernet Distance
|
150m at 850nm
|
10G Ethernet Distance
|
400m at 850nm
|
|
Polish Type
|
UPC to UPC
|
Minimum Bend Radius
|
7.5mm
|
|
Attenuation at 850nm
|
≤2.3dB/km
|
Attenuation at 1300nm
|
≤0.6dB/km
|
|
Jacket OD
|
3.0mm
|
Cable Jacket
|
Plenum(OFNP)
|
|
MTP Insertion Losss(dB) 850/1300nm
|
Standard
|
≤0.50dB
|
|
|
Elite Low Loss
|
≤0.35dB
|
||
|
Return Loss(dB)
|
≥20dB(UPC)
|
||
|
Installation Tensile Load
|
66 N
|
||
|
Tensile Strength (Long/Short Term)
|
80N/240N
|
||
|
Operating Temperature (° C)
|
-10~ + 70
|
||
|
Storage Temperature (° C)
|
-40 ~ +85
|
||
|
Package
|
1PC/bag
|
||
Features: Used to connect equipment that utilizes MTP style connectors and OM4 10 Gigabit 50/125 Multimode cabling
● Type A, Type B and Type C Polarity Options available
● Each cable 100% tested for low insertion loss and back reflection
● Custom lengths and cable colors available
● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options
● Reduced Insertion Loss by up to 50%
● High Durability
● High Temperature Stability
● Good Exchangeability
● High Density design cuts down on installation costs
● Designed for 40Gig QSFP systems

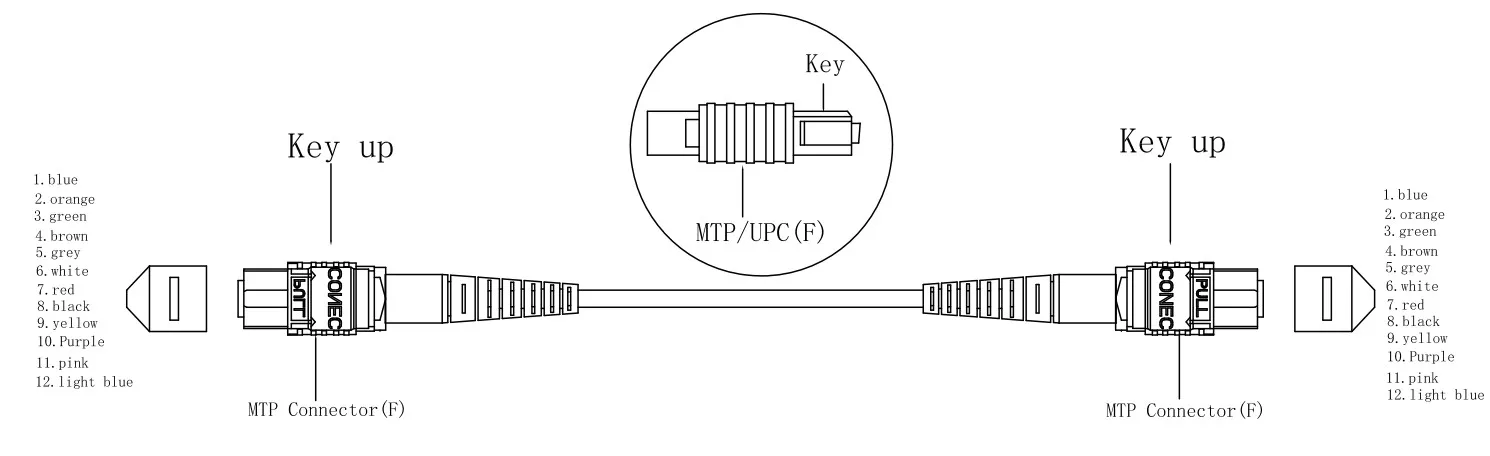

MTP Connector Type
MTP connector can choose Male or Female
Fiber Polarity Guidance
12 Fibers MPO Fiber Polarity
24 Fibers MPO Fiber Polarity

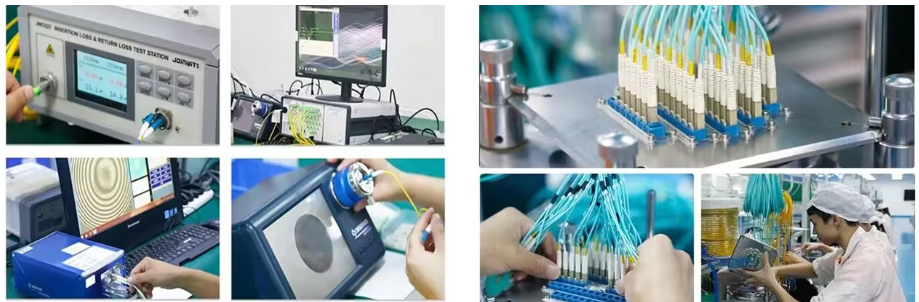

Manufacturing Technique
FAQ
Q1. Do you provide OEM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
