Senko MPO Female APC to 8 Duplex LC UPC Singlemode 16 Core FTTH Fiber Cable

Short Description:

Raw Materials: Corning Or YOFC fiber, Us kevlar,Senko

Fiber Mode: Singlemode 9/125 OS1/OS2

Length: Customized Length

Cable Diameter: 3mm

Cable Colors: Yellow or Customized

Using Life: 20 Years

MOQ: 1 PCS

Lead Time: 3 days

Country of Origin: China

Send email to us

Product Detail

Product Tags

Products Description

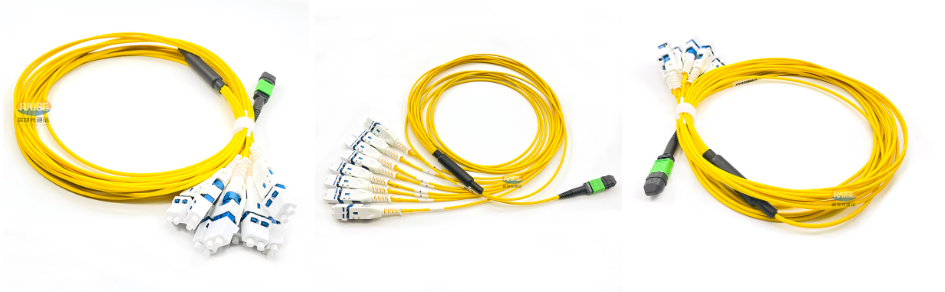

16 Cores MPO Female to 8 x Duplex LC/UPC 9/125 Singlemode Breakout Fiber Cable

MPO breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR,400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.

Product Paramenters

Connector Type	MPO/Female to 8 Duplex LC/UPC	Fiber Type	OS2 9/125μm
Wavelength	1310/1550nm	Fiber Count	16 Fibers (Base-16)
Polish Type	APC (MTP) to UPC (LC)	Minimum Bend Radius	10mm
MTP Connector Count	1	LC Connector Count	16
MTP Connector IL	0.20dB Max	LC Connector IL	≤0.35dB
MTP Connector RL	≥20dB	LC Connector RL	≥35dB
Attenuation at 850nm	≤3.5dB/km	Attenuation at 1300nm	≤3.5dB/km
Jacket OD	2.0mm	Cable Jacket	PVC/OFNR/LSZH/Plenum(OFNP)
Polarity	Type B
Installation Tensile Load	66 N
Tensile Strength (Long/Short Term)	80N/240N
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1PC/bag

Features:

Used to connect equipment that utilizes MPO style and LC connectors and OS2 9/125 Singlemode cabling

Double jacket sheath further protects network connections

Double jackets with greater pressure resistance protect the fiber core and increase the strength and durability of the fiber.

Excellent workmanship ensures stable transmission

Senko MPO/LC cables provide state-of-the-art multi-fiber and mechanical properties.

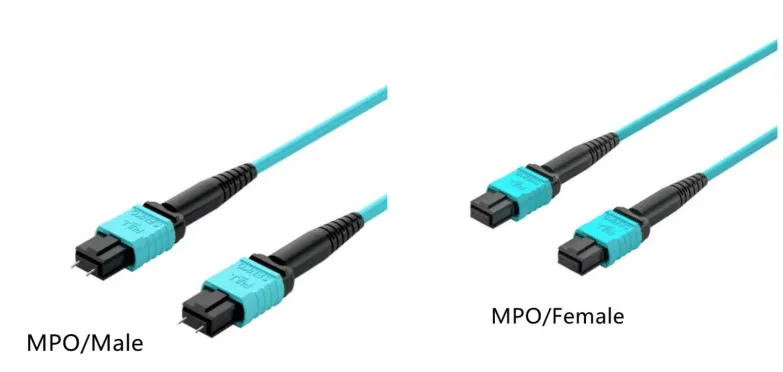

MPO Connector Type

MPO connector can choose Male or Female

Customized services

Cable printing Customized Length Customized

Cable Color CustomizedCable OD Customized(0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm)

Boot Color & Length Customized

Application

Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, and network applications.

Packing & Delivery

Packaging & Shipping

In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
