6 Strand SC APC to SC APC 9/125 G657A2 Singlemode LSZH 2.0mm Fiber Cable for Data Transmission

Short Description:

Raw Materials: Corning Or YOFC fiber, Us kevlar

Length: Customized Length

Cable Diameter: 1.6mm, 1.8mm, 2.0mm, 3.0mm

Cable Colors: Yellow or Customized

Using Life: 20 Years

MOQ: 1 PCS

Lead Time: 3 days

Country of Origin: China

Send email to us

Product Detail

Product Tags

Products Description

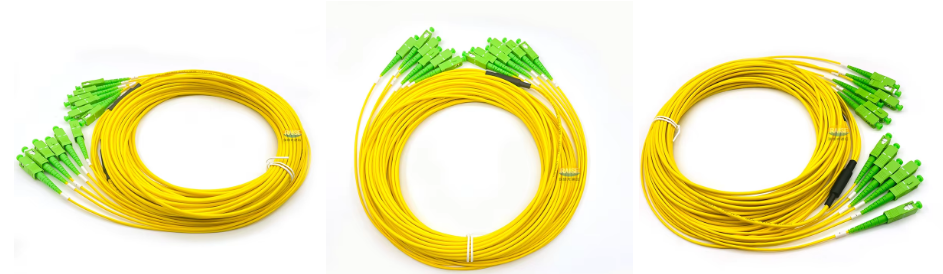

G657A2 Single-Mode 6 Strand SC APC to SC APC Fiber Optic Patch Cable

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities,telecommunications rooms, data centres, and at the desk.This G657A2 fibre patch cable is ideal for connecting1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
The bend insensitive fibre patch cable has less attenuation when bent or twisted compared with traditional fibre patch cable and this will make the installation and maintenance more efficient.

Model Number:	Fiber Optic Patch Cord	Connector Type:	SC/APC to SC/APC
Use:	FTTX	Length:	Customized
Place of Origin:	Guangdong, China	Brand:	OEM/ODM
Network:	Wireless Lan	Fiber Type:	9/125 OS2 ...Customized
Min. Bend Radius (Fiber Core)	5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Fiber count:	6 Core	Connector Polish:	APC
Insertion loss:	≤0.3dB(APC/UPC)	Return loss:	Single Mode APC ≥60dB , Single mode UPC ≥50dB
Jacket:	PVC/OFNR/LSZH/ Plenum(OFNP)	Jacket Color:	Yellow...Customized
Cable Diameter	1.6mm/1.8mm/2.0mm/3.0mm	Laying Method:	Indoor cabling
Operating Temperature (° C)	-10~ + 70	Storage Temperature (° C)	-40 ~ +85
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord

feature

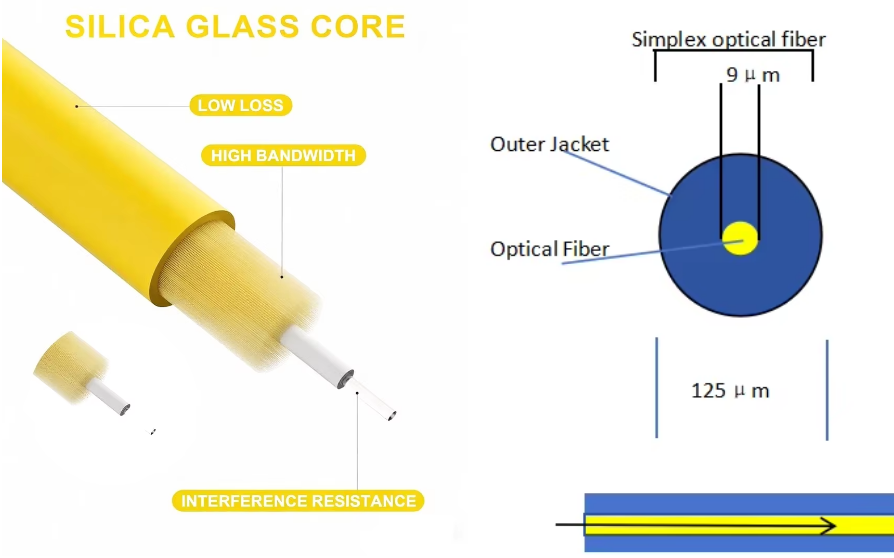

High performance transmission

Low insertion loss and high return loss ensure stable signal strength and high-quality data transmission, meeting the needs of 10G, 40G and even higher speed networks

Double jacket sheath further protects network connections

Double jackets with greater pressure resistance protect the fiber core and increase the strength and durability of the fiber.

PVC jacket Good insulation,low cost.
OFNP jacket high flame retardant,non-conductive properties.
Plenum outer sheath meets strict fre protection standards, is not easy to burn at high temperatures, and releases less smoke and toxic gas during combustion. It is used in office buildings, data centers, etc.

Excellent durability and safety

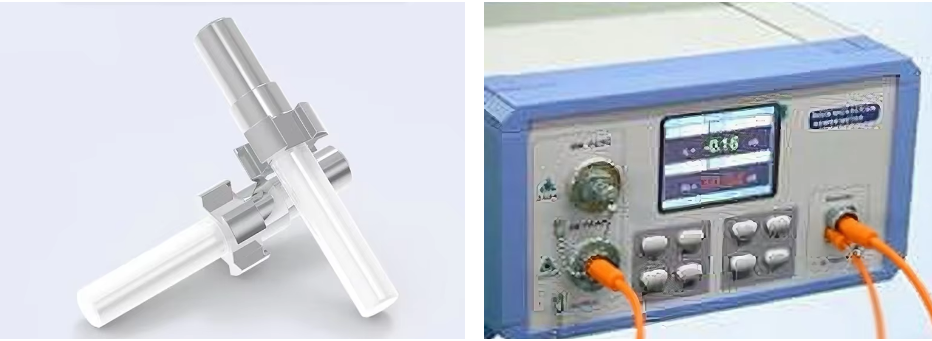

High-quality ceramic core ensures high precision and alignment and extends the life of the connector.

Flexibility and customization.

Cable printing Customized and Length Customized
Cable Color Customized and Cable OD Customized(1.6mm, 1.8mm, 2.0mm, 3.0mm)
Boot Color & Length Customized

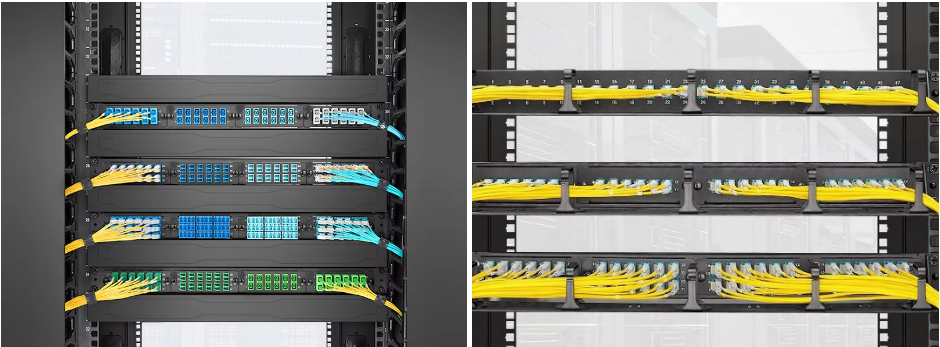

Provide Interconnect and Cross-connect of Application

Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, and network applications.

Manufacturing Technique

Supply Ability：2000 Piece/Pieces per Day

Our service

1. Advanced production and testing equipment

2. Professional manufacturer. 100% Tested

3. Fully compliant with IS0 9001:2008 quality management system

4. Your company has rich experience in professional team

5. Provide reliable solutions and satisfying services

6. Careful attention to temperature services

7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment

Packing & Delivery

Packaging & Shipping

In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
