Customised 12 Core OM3 Multimode 10Gb Industrial TPU Direct Burial LC to LC Armored Fiber Patch Cable 100M for FTTH

Short Description:

Product Name: LC/UPC-LC/UPC MM 12Core OM3 Armored Fiber Optic Patch Cable

Raw Materials: Corning Or YOFC fiber, Us kevlar

Length: Customized Length able

Cable Diameter: 0.9mm/1.2mm/1.6mm/2.0mm/3.0mm

Cable Colors: Black,Aqua, Grey, Yellow, Blue or Customized

Send email to us

Product Detail

Product Tags

Products Description

50/125μm 12 Fiber OM3 Outdoor Armored LC/UPC-LC/UPC Fiber Optic Cable

* 12 Core OM3 Multimode LC Industrial TPU Fiber Optic Patch Cable: Industrial TPU Jacket features strong tensile strength, high abrasion resistance, water proof, high and low-temperature resistance, uv-resistant, bending resistant. Suitable for Various Harsh Installation Environments such as roads & snowfields & industrial fields & construction sites.
* Ideal for both indoor and outdoor applications. Can be installed overhead, buried directly in the ground, or routed through conduits.
* Armored 12 Fiber LC Jumper: Combination of Metal Steel Armor and Glass Fiber Yarns Provides Dual Physical Protection Against Rodents.
* 12 Strands OM3 LC Fiber Cable pre-terminated: Simple to install, pre-terminated, just plug and go.
* Max. 600N Tensile Strength and Max. 3000N Crush Strength.

Model Number:	Armored Fiber Optic Patch Cord	Connector Type:	LC/UPC to LC/UPC
Use:	FTTX	Length:	Customized
Place of Origin:	Guangdong, China	Brand:	OEM/ODM
Network:	Wireless Lan	Fiber Type:	OM3 ...Customized
Min. Bend Radius (Fiber Core)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Fiber count:	12 Fiber	Polish:	UPC/APC/PC
Insertion loss:	≤0.3dB(UPC/APC/PC)	Return loss:	≥35dB
Jacket:	PVC/OFNR/LSZH/Plenum(OFNP)	Jacket Color:	Black...Customized

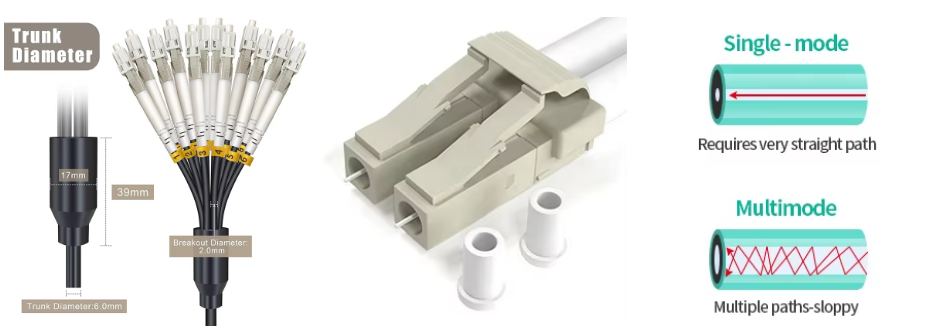

Trunk Diameter	6.0mm	Breakout Diameter:	2.0mm
Operating Temperature (° C)	-40~ + 70	Storage Temperature (° C)	-40 ~ +85
Exchangeability	≤ 0.2dB
Laying Method:	outdoor cabling

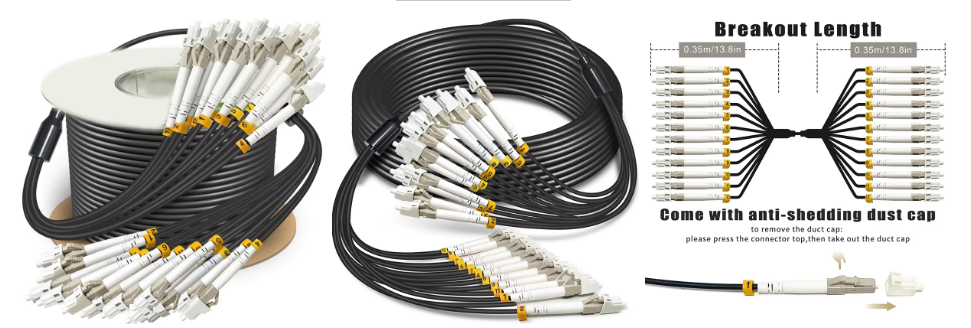

Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord

Features

Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability.

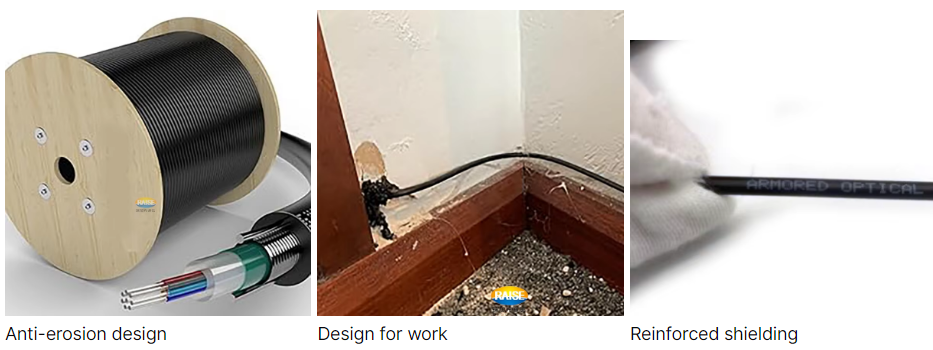

Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.

Our 10Gb LC to LC Fiber Optic Cables

Superior Quality Material

* LSZH plastic, shiny,tough,environmental protection.
* Aramidl cable,non-toxic,fire retardant,core protection and low smoke.
* durable,high temperature resistant.

LC to LC Connector

* High-precision Ceramic ferrule, Low insertion loss, large return loss,strong stability and interchangeability.
* Protective Dust Cap, prevent the fiber line and ensure the end of the plug will not damage the product parameters.

Multi-mode

* Light travels way: Light travels along a straight line without reflection. Multi-mode fiber carry multi-channel optical signal
transmission.
* Core size: the core size of multi-mode cable is 50.0 micron while a single module is 9.0 micron.

customization

Cable printing Customized and Length Customized
Cable Color Customized and Cable OD Customized(0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm)
Boot Color & Length Customized

Application

Outdoor & indoor use for tough environments

Supply Ability

Supply Ability：2000 Piece/Pieces per Day

Manufacturing Technique

Packing & Delivery

Packaging & Shipping

In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
