Customized LC to LC Fiber Patch Cable OM4 Length Options: 0.2m-100m,10GB Multimode Duplex for Data Centers
Products Description

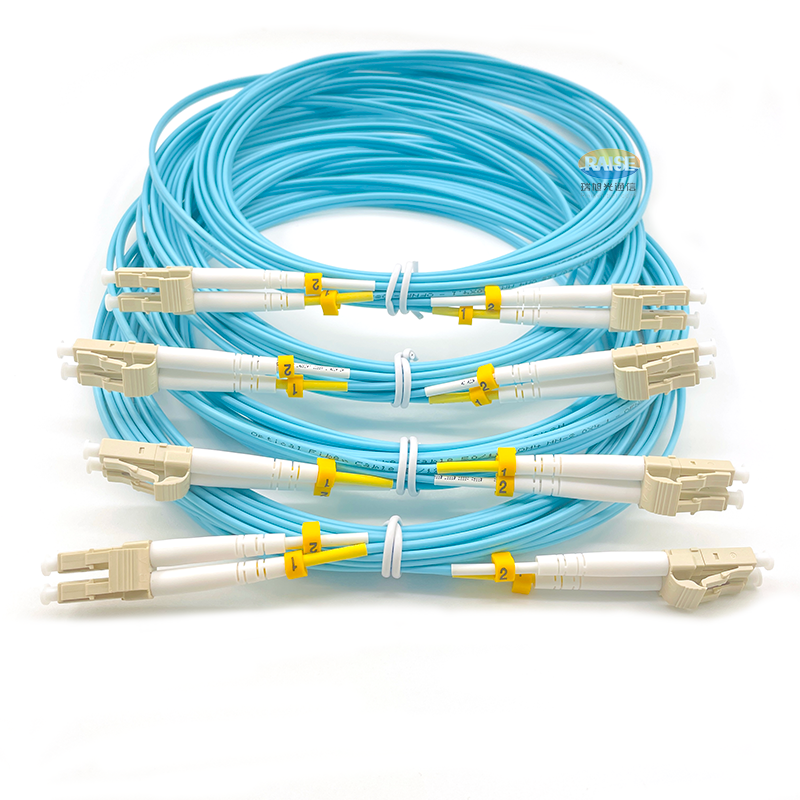

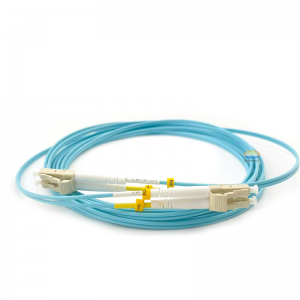

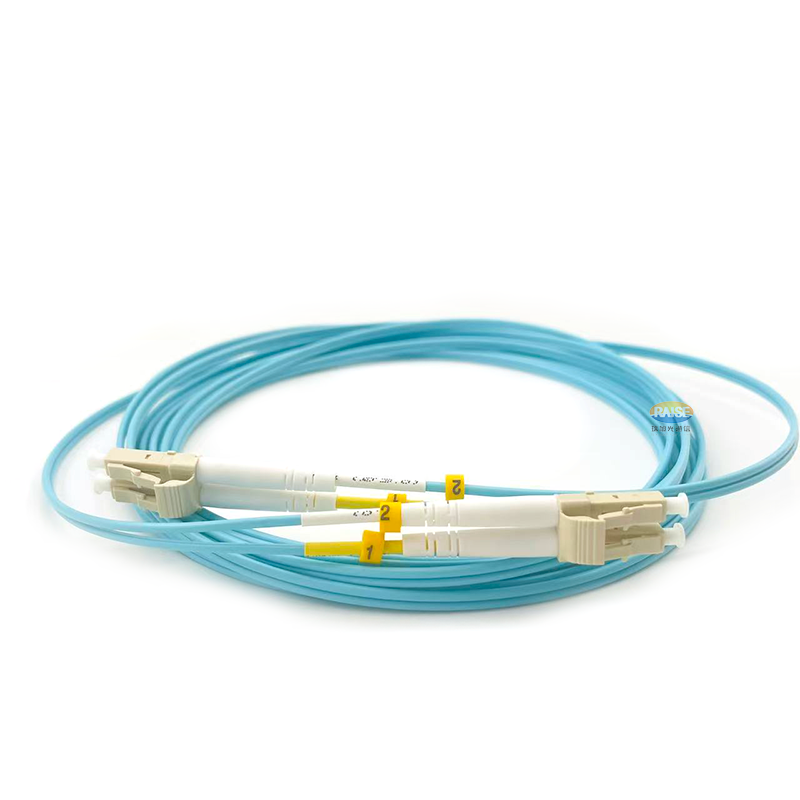

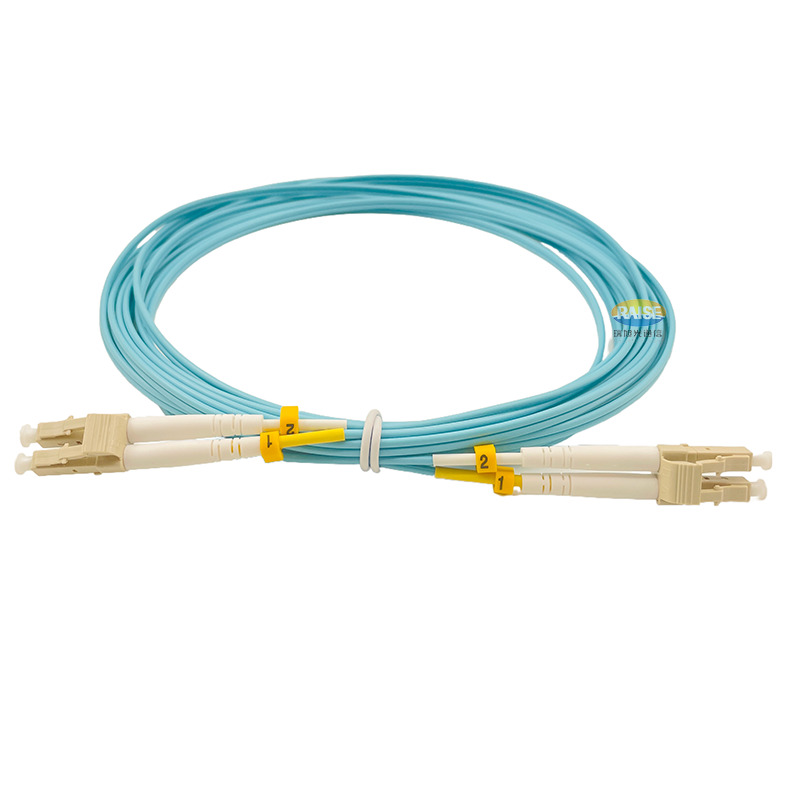

50/125μm OM4 Multimode LC/UPC-LC/UPC Bend Insensitive 2mm Fiber Optic Cable
The 50/125μm om4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. This fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
|
Model Number:
|
Fiber Optic Patch Cord
|
Connector Type:
|
LC/UPC to LC/UPC Duplex
|
|
Use:
|
FTTX
|
Length:
|
Customized
|
|
Place of Origin:
|
Guangdong, China
|
Brand:
|
OEM/ODM
|
|
Network:
|
Wireless Lan
|
Fiber Type:
|
OM4 ...Customized
|
|
Min. Bend Radius
(Fiber Core) |
10mm
|
Min. Bend Radius
(Fiber Cable) |
10/5D (Dynamic/Static)
|
|
Fiber count:
|
Duplex
|
Polish:
|
UPC/APC/PC
|
|
Insertion loss:
|
≤0.3dB(UPC/APC/PC)
|
Return loss:
|
UPC/PC ≥50dB; APC≥60dB
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
Jacket Color:
|
Auqa...Customized
|
|
Cable Diameter
|
0.9mm/1.2mm/1.6mm/2.0mm/3.0mm
|
Laying Method:
|
Indoor cabling
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
|
Cable Assemblies
|
Pigtail/Simplex/Duplex/Fan-out Patch cord
|
||
Features
Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability

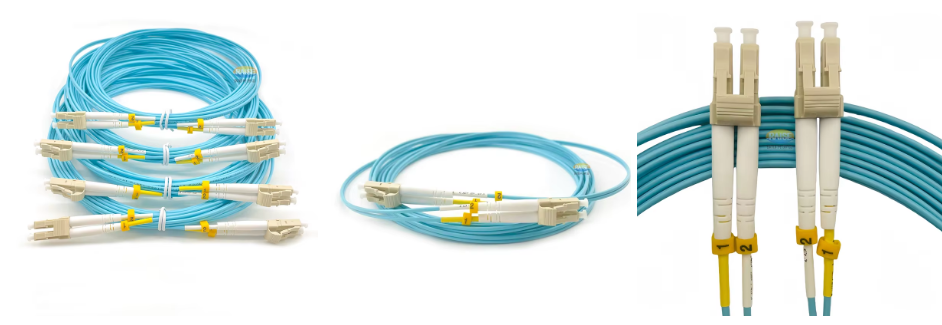

Our 10Gb LC to LC Fiber Optic Cables
Superior Quality Material
* PVC/LSZH plastic, shiny,tough,environmental protection.
* Aramidl cable,non-toxic,fire retardant,core protection and low smoke.
* PBT plastic materials and fine copper,durable,high temperature resistant.
* Aramidl cable,non-toxic,fire retardant,core protection and low smoke.
* PBT plastic materials and fine copper,durable,high temperature resistant.

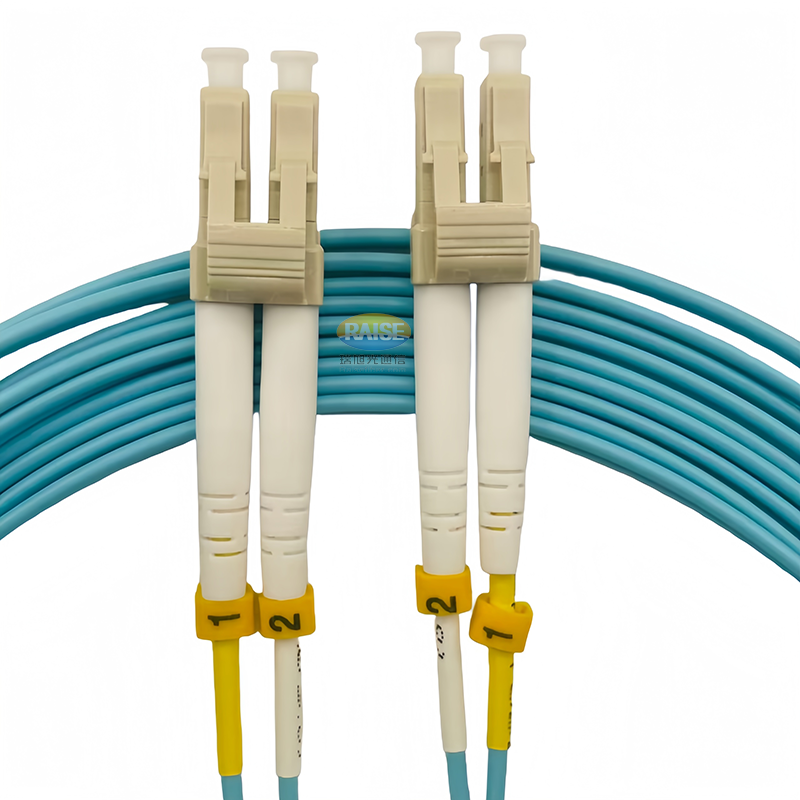

LC to LC Connector
* High-precision Ceramic ferrule, Low insertion loss, large return loss,strong stability and interchangeability.
* Protective Dust Cap, prevent the fiber line and ensure the end of the plug will not damage the product parameters
* Protective Dust Cap, prevent the fiber line and ensure the end of the plug will not damage the product parameters

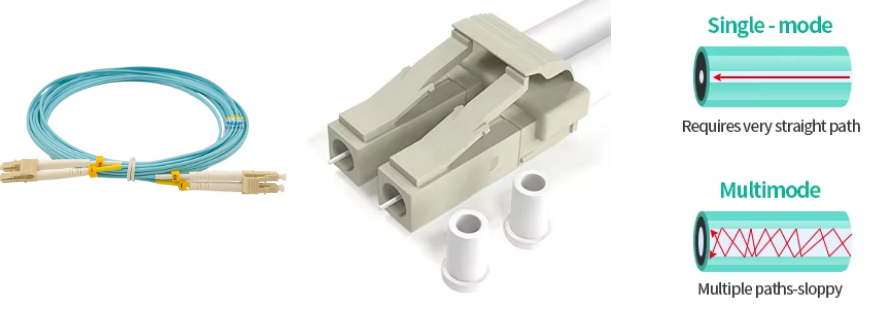

Multi-mode
* Light travels way: Light travels along a straight line without reflection. Multi-mode fiber carry multi-channel optical signal
transmission.
* Core size: the core size of multi-mode cable is 50.0 micron while a single module is 9.0 micron.
transmission.
* Core size: the core size of multi-mode cable is 50.0 micron while a single module is 9.0 micron.
customization
- Cable printing Customized and Length Customized
- Cable Color Customized and Cable OD Customized(0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm)
- Boot Color & Length Customized

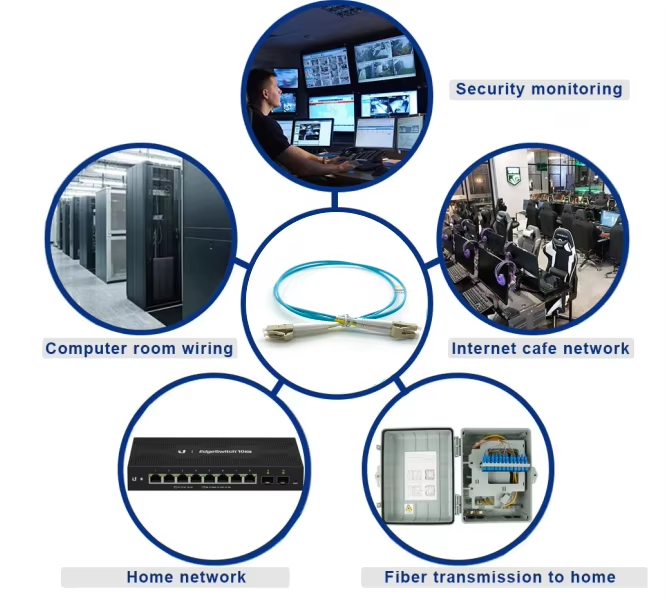

Application
Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, telecommunication network,CATV ,LAN and WAN ,FTTX ,Broadband network.
Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, telecommunication network,CATV ,LAN and WAN ,FTTX ,Broadband network.
Supply Ability
Supply Ability：2000 Piece/Pieces per Day
Packing & Delivery
Packaging & Shipping
In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.

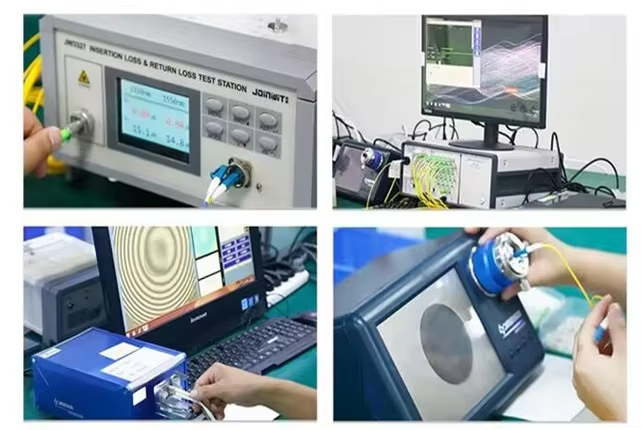

Manufacturing Technique
Our service
1. Advanced production and testing equipment
2. Professional manufacturer. 100% Tested
3. Fully compliant with IS0 9001:2008 quality management system
4. Your company has rich experience in professional team 5. Provide reliable solutions and satisfying services
6. Careful attention to temperature services
7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
