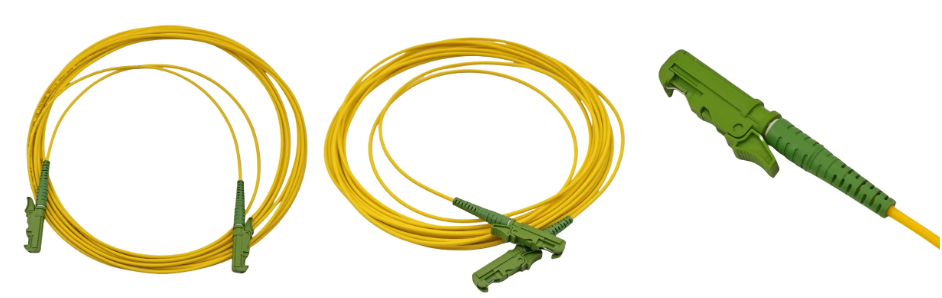

E2000 APC to E2000 APC Singlemode Fiber Optic Patch Cord G657A1 LSZH 2.0mm
Products Description
E2000 APC to E2000 APC 9/125μm Single Mode Bend Insensitive Fiber Optic Cable
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. This fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
|
Model Number:
|
Fiber Optic Patch Cord
|
Connector Type:
|
E2000
|
|
Use:
|
FTTX
|
Length:
|
Customized
|
|
Place of Origin:
|
Guangdong, China
|
Brand:
|
OEM/ODM
|
|
Network:
|
Wireless Lan
|
Fiber Type:
|
G657A1 (Compatible with G.652.D), G657A2, G657B3 ...Customized
|
|
Min. Bend Radius
(Fiber Core) |
10mm
|
Min. Bend Radius
(Fiber Cable) |
10/5D (Dynamic/Static)
|
|
Fiber count:
|
Simplex
|
Polish:
|
APC
|
|
Insertion loss:
|
≤0.3dB(UPC/APC/PC)
|
Return loss:
|
UPC/PC ≥50dB; APC≥60dB
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
Jacket Color:
|
Yellow/Red/Blue...Customized
|
|
Cable Diameter
|
0.9mm/1.2mm/1.6mm/2.0mm/3.0mm
|
Laying Method:
|
Indoor cabling
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
|
Cable Assemblies
|
Pigtail/Simplex/Duplex/Fan-out Patch cord
|
||
Cable printing Customized and Length Customized
Cable Color Customized and Cable OD Customized (2.0mm, 3.0mm)
Boot Color & Length Customized
Application
Data Center
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network
Supply Ability
Supply Ability：2000 Piece/Pieces per Day
Features
Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability

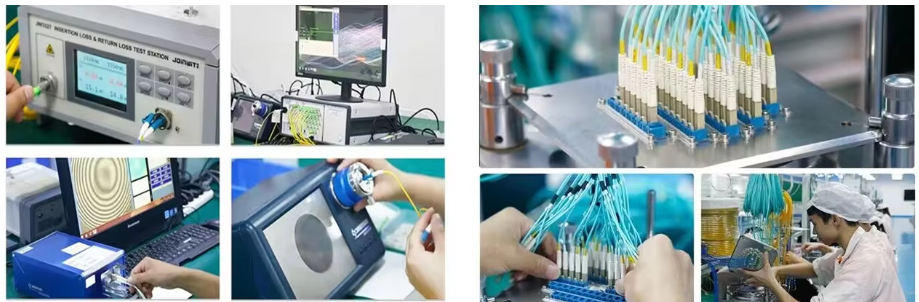

Manufacturing Technique
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
