Factory Wholesale 6 Core OM4 Multimode 10Gb Industrial TPU Direct Burial LC to LC Outdoor Armored Fiber Patch Cable for FTTH
Products Description
50/125μm 6 Fiber OM4 Outdoor Armored LC/UPC-LC/UPC Fiber Optic Cable
* 6 Core OM4 Multimode LC Industrial TPU Fiber Optic Patch Cable: Industrial TPU Jacket features strong tensile strength, high abrasion resistance, water proof, high and low-temperature resistance, uv-resistant, bending resistant. Suitable for Various Harsh Installation Environments such as roads & snowfields & industrial fields & construction sites.

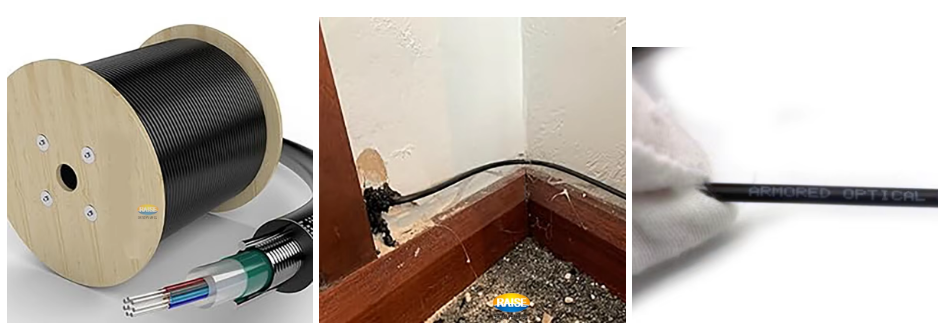

* Ideal for both indoor and outdoor applications. Can be installed overhead, buried directly in the ground, or routed through conduits.
* Armored 6 Fiber LC Jumper: Combination of Metal Steel Armor and Glass Fiber Yarns Provides Dual Physical Protection Against Rodents.
* 6 Strands OM4 LC Fiber Cable pre-terminated: Simple to install, pre-terminated, just plug and go.
* Max. 600N Tensile Strength and Max. 3000N Crush Strength.
* Ideal for both indoor and outdoor applications. Can be installed overhead, buried directly in the ground, or routed through conduits.
* Armored 6 Fiber LC Jumper: Combination of Metal Steel Armor and Glass Fiber Yarns Provides Dual Physical Protection Against Rodents.
* 6 Strands OM4 LC Fiber Cable pre-terminated: Simple to install, pre-terminated, just plug and go.
* Max. 600N Tensile Strength and Max. 3000N Crush Strength.
|
Model Number:
|
Armored Fiber Optic Patch Cord | Connector Type: | LC/UPC to LC/UPC |
| Use: | FTTX | Length: | Customized |
| Place of Origin: | Guangdong, China | Brand: | OEM/ODM |
| Network: |
Wireless Lan
|
Fiber Type: | OM4 ...Customized |
| Min. Bend Radius (Fiber Core) |
10mm | Min. Bend Radius (Fiber Cable) |
10/5D (Dynamic/Static) |
| Fiber count: | 6 Fiber | Polish: | UPC/APC/PC |
| Insertion loss: | ≤0.3dB(UPC/APC/PC) | Return loss: | ≥35dB |
| Jacket: | PVC/OFNR/LSZH/Plenum(OFNP) | Jacket Color: | Black...Customized |
| Trunk Diameter | 5.0mm | Breakout Diameter: | 2.0mm |
| Operating Temperature (° C) |
-40~ + 70
|
Storage Temperature (° C) | -40 ~ +85 |
| Exchangeability |
≤ 0.2dB
|
||
| Laying Method: | outdoor cabling | ||
| Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patch cord
|
||
Features
- Durable Armored Protection – Stainless steel or metal armor effectively resists crushing, rodent bites, and accidental pulling.
- High-Performance Multimode Transmission – Supports OM3/OM4 standards for 10G/40G/100G high-speed networks.
- Flexible & Bend-Resistant – Rugged yet flexible armored design allows easy routing in complex cabling environments.
- Low Insertion Loss – High-precision ceramic ferrules ensure stable optical performance and minimal signal loss.
- Plug & Play – Standard LC/SC/FC connectors enable quick installation in data centers, FTTH, and industrial networks.
- Indoor & Outdoor Ready – Moisture-proof, crush-resistant, and rodent-proof for a wide range of applications.
Build a Stable and Robust Fiber Optic Network

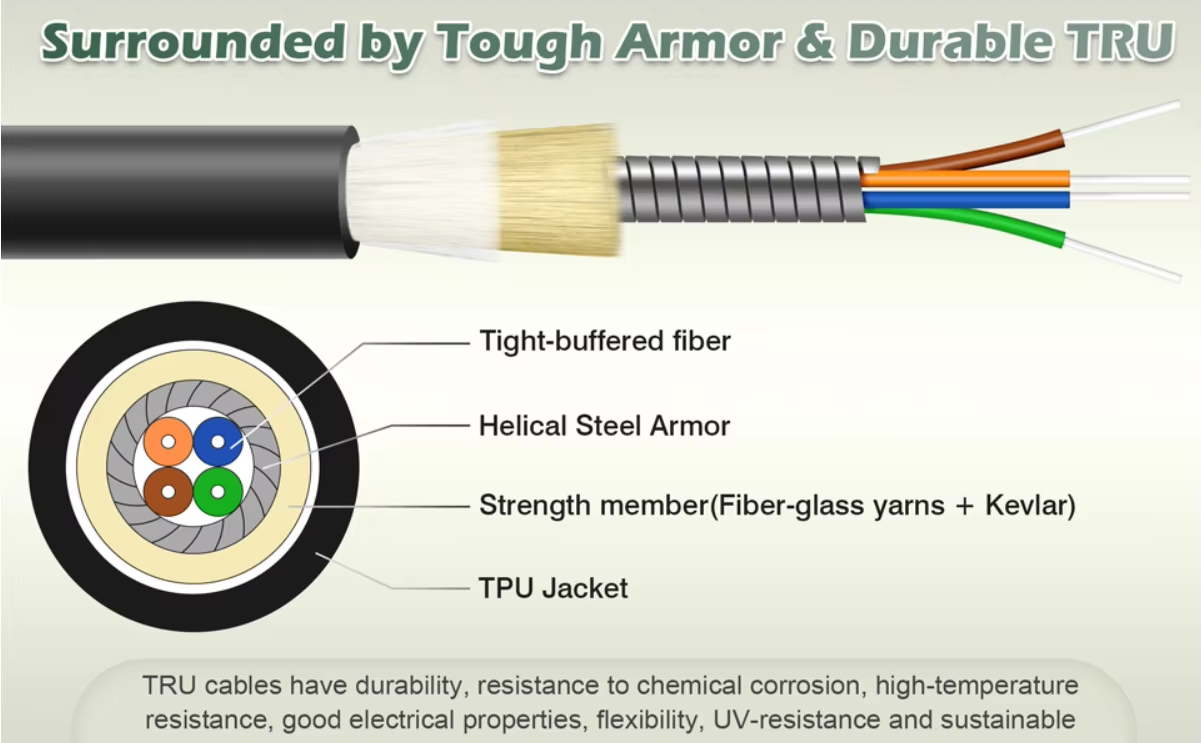

High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.

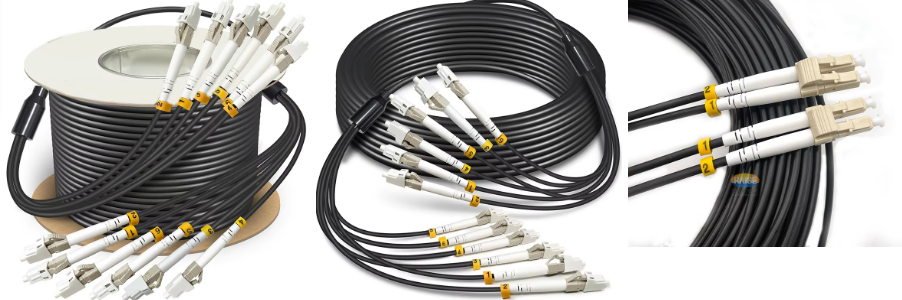

Our 10Gb LC to LC Fiber Optic Cables
10/5D Bend Radius:The fiber allows tighter cable bends for slack storage and routing.
200-600N Tensile Strength:The pull-resistant cable prolongs the service life.
3000N Crush Strength Great:pressure resistance avoids destruction by external forces.
customization
- Cable printing Customized and Length Customized
- Cable Color Customized and Cable OD Customized(0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm)
- Boot Color & Length Customized
Application
Outdoor & indoor use for tough environments
Anti-erosion design,Design for work,Reinforced shielding
Supply Ability
Supply Ability：2000 Piece/Pieces per Day
Manufacturing Technique
Packing & Delivery
Packaging & Shipping
In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be
longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
