GYFJH LC UPC to FC UPC Duplex OS2 Single Mode Outdoor FTTA 7.0mm LSZH Fiber Patch Cable for Base Station
Products Description
GYFJH Outdoor cable CPRI FTTA Patch Cord Duplex Single Mode 7.0mm LSZH Outdoor Fiber Patch Cable for Base Station LC UPC to FC UPC

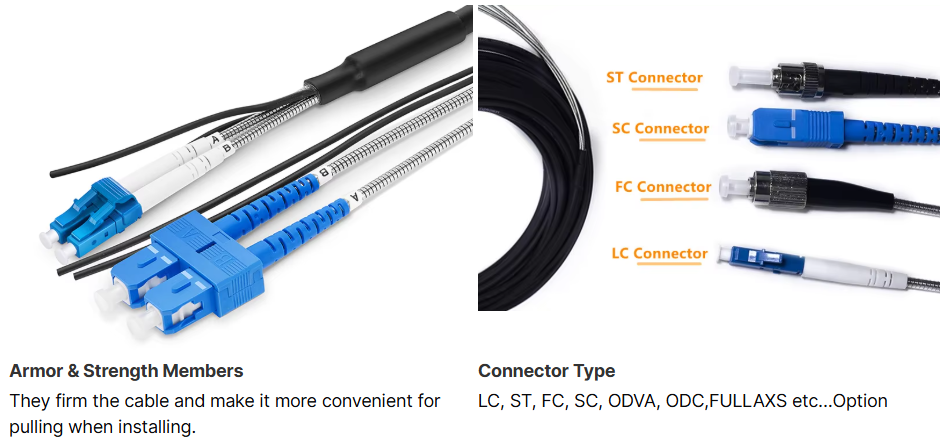

FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution. Consisting of fiber cable and LC UPC to FC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations
Product Paramenters
|
Connector Type
|
LC/UPC to FC/UPC
|
Fiber Type
|
Singlemode
|
|
Fiber Grade
|
G652D/G657A1/G657A2
|
Fiber Count
|
Duplex
|
|
Insertion Loss
|
≤0.3dB
|
Return Loss
|
UPC ≥50dB
|
|
Cable Jacket
|
Low Smoke Zero Halogen (LSZH)
|
Cable Diameter (Outer/Inner)
|
7.0/3.0mm
|
|
Tensile Strength
|
200/400N (Long/Short Term)
|
Crush Resistance
|
1100/2200N (Long/Short Term)
|
|
Operating Temperature
|
-20~70°C
|
Storage Temperature
|
-40~80°C
|
Features
• Excellent flexibility for remote traction
• Low insertion and back reflection loss
• Good exchangeability
• Good durability
• High temperature stability
• Designed for FTTA application
• For wireless horizontal and vertical cabling in outdoor environment
Application
• 3G, 4G base station
• BBU, RRU, RRH, LTE
• FTTA, FTTP, FTTX, WIMAX
• Mining and shipboard
• Aerospace and Defense
• Horizontal and Vertical Cabling
• BBU, RRU, RRH, LTE
• FTTA, FTTP, FTTX, WIMAX
• Mining and shipboard
• Aerospace and Defense
• Horizontal and Vertical Cabling
Designed for Outdoor Base Station Construction
It's suitable for harsh environments such as fiber-to-the antenna (FTTA) cabling in LTE/4G/5G networks, base stations and also meets the needs of remote traction.
Manufacturing Technique
FAQ
Q1. Do you provide OEM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
