High Quality 12 Core Singlemode MPO Female APC to MPO Female APC Push Pull Tab Fiber Cable
Products Description
MPO Jumper, MPO/APC Push Pull Tab to MPO/APC Push Pull Tab 12 Fibers Single Mode (OS2) 9/125 3mm Fiber Optic Patch Cord
MPO jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Due to the MPO-12 also supporting MPO-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4, and 400G QSFP-DD DR4/XDR4 optics connection.
Product Paramenters
|
Connector A
|
MPO Push Pull Tab
|
Connector B
|
MPO Push Pull Tab
|
|
Fiber Mode
|
9/125 SM
|
Wavelength
|
1310/1550nm
|
|
Fiber Grade
|
G.657.A1 (Compatible with G.652.D)
|
Polish Type
|
APC
|
|
Minimum Bend Radius
|
10mm
|
Cable Length
|
1m, 2m 3m ...customized
|
|
Insertion Loss (dB) 850/1300nm
|
Standard Loss ≤0.50
Elite Low Loss ≤0.35
|
Return Loss
|
APC ≥60dB
UPC ≥50dB
|
|
Attenuation at 1310nm
|
≤0.32dB/km
|
Attenuation at 1310nm
|
≤0.18dB/km
|
|
Jacket OD
|
3.0mm
|
Cable Jacket
|
OFNR(PVC)/LSZH/Plenum(OFNP)
|
|
Installation Tensile Load
|
66 N
|
Tensile Strength (Long/Short Term)
|
80N/240N
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
Test Assured Program

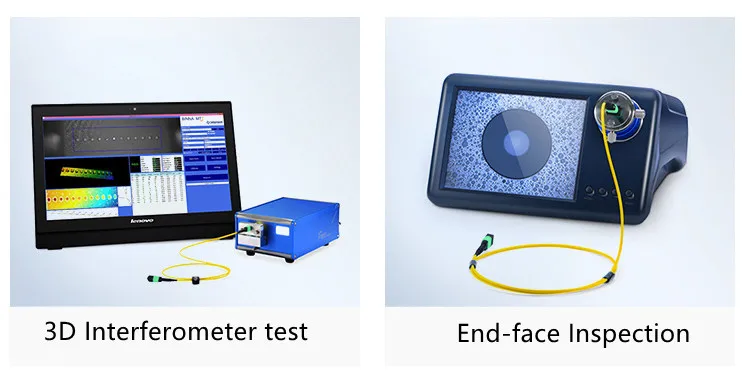

3D interferometer provides verification of MTP/MPO polishing process and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
Features: Used to connect equipment that utilizes MPO style connectors and Single Mode OS1/OS2 9/125μm Cabling
● Type A, Type B and Type C Polarity Options available
● Each cable 100% tested for low insertion loss and back reflection
● Custom lengths and cable colors available
● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options
● Reduced Insertion Loss by up to 50%
● High Durability
● High Temperature Stability
● Good Exchangeability
● High Density design cuts down on installation costs
● Designed for 40Gig QSFP systems
MPO Connector Type
MPO connector can choose Male or Female
Fiber Polarity Guidance
12 Fibers MPO Fiber Polarity
24 Fibers MPO Fiber Polarity

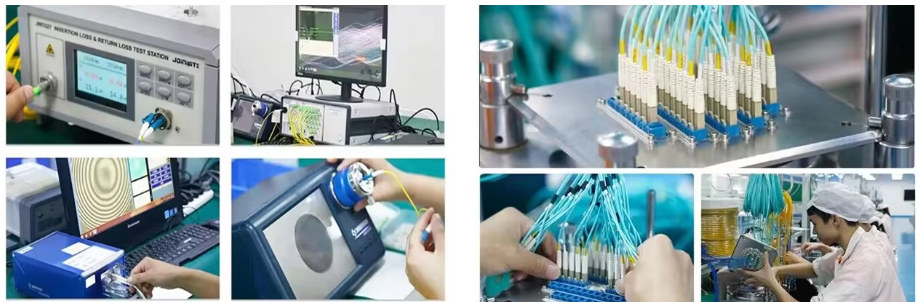

Manufacturing Technique
FAQ
Q1. Do you provide OEM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
