High Quality CS to CS OS2 Single Mode Duplex Fiber Optic Patch Cord 9/125 LSZH

Short Description:

Product Name: CS to CS Single Mode Simplex 9/125 2.0mm LSZH Optic Patch Cord

Raw Materials: Corning Or YOFC fiber, Us kevlar

Length: Customized Length

Cable Diameter: 2.0mm or Cusomized

Cable Colors: Yellow or Customized

Using Life: 20 Years

MOQ: 1 PCS

Lead Time: 3 days

Country of Origin: China

Send email to us

Product Detail

Product Tags

Products Description

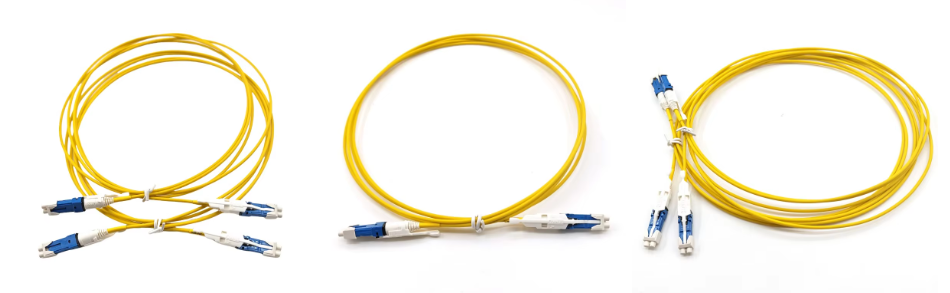

9/125 Singlemode CS/UPC to CS/UPC Fiber Optic Patch Cable

The uniboot design allows one cable to carry both fibers, reducing cable congestion when routing. It is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.

Model Number:	Fiber Optic Patch Cord	Connector Type:	CS/UPC to CS/UPC
Use:	FTTX	Length:	Customized
Place of Origin:	Guangdong, China	Brand:	OEM/ODM
Wavelength	1310/1550nm	Fiber Type:	9/125 SM ...Customized
Min. Bend Radius (Fiber Core)	10mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Fiber count:	Duplex	Connector Polish:	UPC/PC
Insertion loss:	≤0.3dB(UPC/PC)	Return loss:	UPC/PC ≥50
Jacket:	PVC/OFNR/LSZH/Plenum(OFNP)	Jacket Color:	Yellow...Customized
Cable Diameter	1.6mm/1.8mm/2.0mm/3.0mm	Laying Method:	Indoor cabling
Operating Temperature (° C)	-10~ + 70	Storage Temperature (° C)	-40 ~ +85
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord

Cable printing Customized and Length Customized
Cable Color Customized and Cable OD Customized (2.0mm, 3.0mm)
SM Connector Color Blue and White Boot

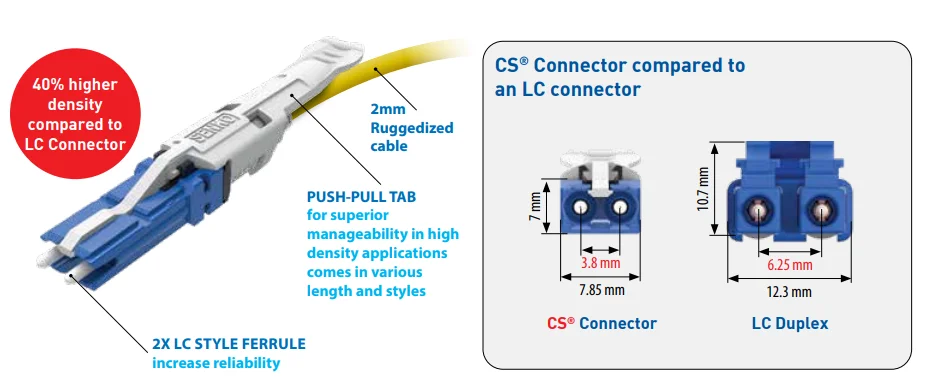

CS Connector

The CS connector is Smaller then LC Duplex connector and is ideal for space-saving solutions.

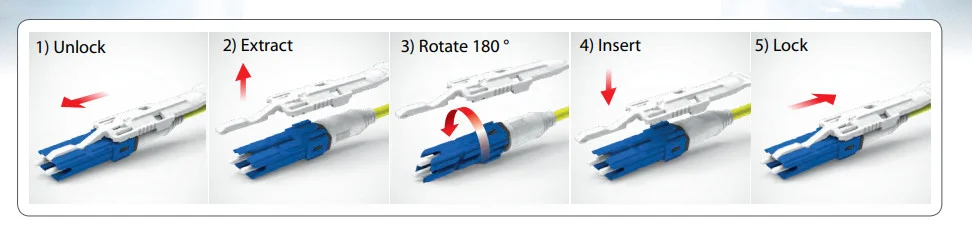

CS Switchable polarity

Application:

Data Center

Telecommunication networks

CATV

LAN and WAN

FTTX

Broadband network

Supply Ability

Supply Ability：2000 Piece/Pieces per Day

Features

Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability

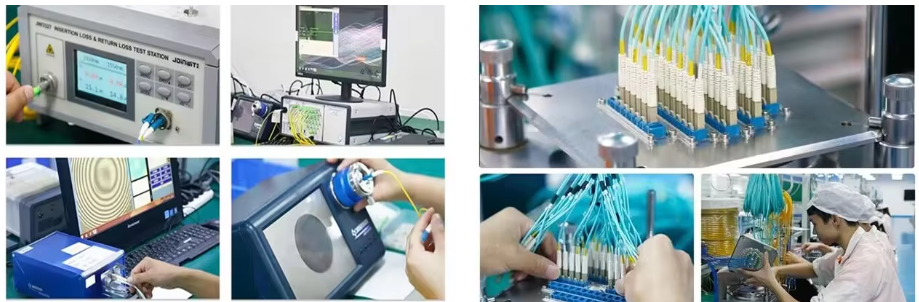

Manufacturing Technique

FAQ

Q1. Do you provide OEM ODM service ?

Yes, we can print your logo or label on the products or on the box.

Q2. How can you guarentee the quality ?

Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q3. What is your delivery time ?

Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q4. What's the method of shipment?

We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.

Q5. What's the Payment?

We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
