LC to LC UPC Multimode Duplex Fiber Optic Patch Cord OM3/OM4 50/125μm
Products Description
Customized Duplex OM3/OM4 50/125μm Multimode LC UPC to LC UPC Fiber Optic Patch Cord
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities,
telecommunications rooms, data centers, and at the desk.
telecommunications rooms, data centers, and at the desk.
OM4 fiber patch cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers, etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 40/100G applications.
OM3 fiber patch cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.
|
Model Number:
|
Fiber Optic Patch Cord
|
Connector Type:
|
LC/UPC to LC/UPC
|
|
Use:
|
FTTX
|
Length:
|
Customized
|
|
Place of Origin:
|
Guangdong, China
|
Brand:
|
OEM/ODM
|
|
Wavelength
|
850/1300nm
|
Fiber Type:
|
OM3/OM4 50/125μm
|
|
Minimum Bend Radius
|
7.5mm
|
Fiber count
|
Duplex
|
|
Jacket Color:
|
Orange or Customized
|
Connector Polish:
|
UPC
|
|
Insertion loss:
|
≤0.3dB(UPC/PC)
|
Return loss:
|
UPC ≥30dB
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
Cable Diameter:
|
1.6mm/1.8mm/2.0mm/3.0mm
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
|

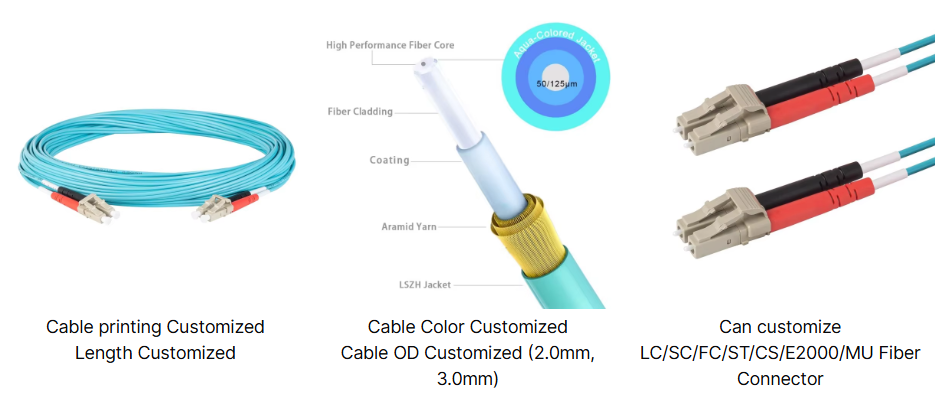

Cable Assemblies
|
Pigtail//Duplex/Fan-out Patch cord
|
||
Customized
Connector Type
Various Connectors Support Custom-tailored Installations
Cable Out-Diamater Option
Four Diameters to Meet Different Wiring Needs
1.6mm, 1.8mm, 2.0mm and 3.0mm cable diameters mainly used for indoor installation and cabling.
|
3.0mm Diameter
|
1.6mm/1.8mm/2.0mm Diameter
|
||
|
3.0mm cable has stronger long-term pull tension and instant pull tension.
|
1.6mm, 1.8mm, 2.0mm cable reduces the pressure of the wiring conduit, saving more space
|
Application:
Data Center
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network
Supply Ability:
Supply Ability：2000 Piece/Pieces per Day
Features
Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability
Manufacturing Technique
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
