LC/UPC Multimode Fiber Pigtail OM1 OM2 OM3 OM4 OM5 6 Fibers 0.9mm Color-Coded Unjacketed
Products Description
6 Fibers LC/UPC Unjacketed Multimode OM1 OM2 OM3 OM4 OM5 Color-Coded Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
|
Model Number
|
Fiber Pigtail
|
Connector Type
|
LC
|
|
Place of Origin
|
Guangdong, China
|
Brand
|
OEM/ODM
|
|
Wavelength
|
850 nm/1300 nm
|
Fiber Mode
|
OM1 62.5/125μm & OM1 OM2 OM3 OM4 OM5 50/125 μm
|
|
Fiber count:
|
6
|
Polish Type
|
UPC/PC
|
|
Insertion loss
|
≤0.3dB(UPC/PC)
|
Return loss
|
UPC/PC ≥35dB
|
|
Cable Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
Jacket Color
|
12-Colors
|
|
Cable Diameter
|
0.9mm
|
Length
|
Customized
|
|
Interchangeability
|
≤0.2 dB
|
Vibration
|
≤0.2 dB
|
|
Operating Temperature (° C)
|
-40~ + 75
|
Storage Temperature (° C)
|
-45 ~ +85
|
Nano-Zirconia Ceramic Ferrules
Guarantees stable and fast network transmission.
LC Connector
Tough and corrosion-resistant, not easily deformed.

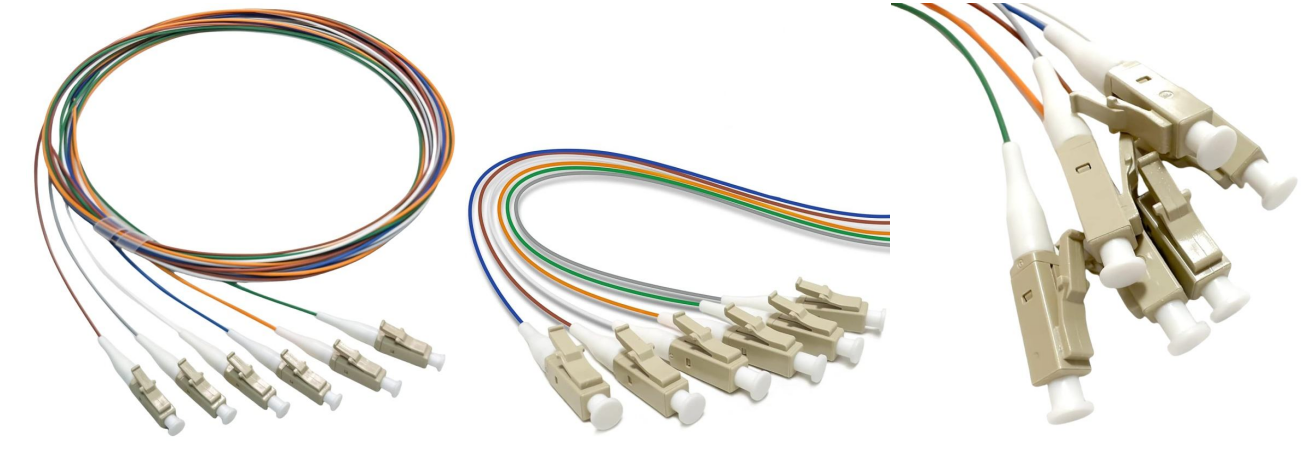

Color-coded Cables
Faster connector identification with color-coded design.

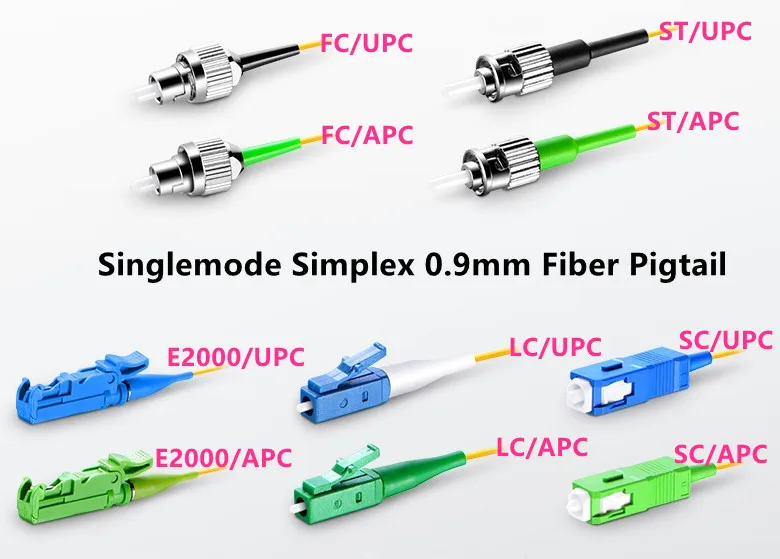

Simplex 0.9mm Fiber Pigtail
0.9mm connector can choose: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, ST/UPC, ST/APC, E2000/UPC, E2000/APC
Perfect for High Density Splicing Applications
The pigtail combines premium zirconia ferrules and rugged composite hardware to provide the optical performance, durability, and repeatability necessary for today's network applications.
Low Loss Fiber & 10mm Min. Bend Radius, provide improved flexibility for limited space setups.
Features
●Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss
●Connectors can choose a PC polish, APC polish or UPC polish
●Each cable 100% tested for low insertion loss and Return loss
●Customized lengths, Cable Diameter and Cable colors available
●OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options
●Tight buffer for easy fusion or mechanical splicing.
●0.9mm cable for high density splicing applications.
●Singlemode/Multimode(OM1/OM2/OM3OM4/OM5) are for your choice.
●LC/SC/ST/FC/E2000...etc connectors are available.
Supply Ability
Supply Ability：2000 Piece/Pieces per Day
Manufacturing Technique
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
