MPO IP67 Waterproof Connector ODVA FTTA Outdoor Fiber Optical Patch Cord Fiber Optic Cable Fiber Jumper
Products Description
Waterproof ODVA-compliant connectors RRU(RRH) and Baseband unit ODVA patch cord

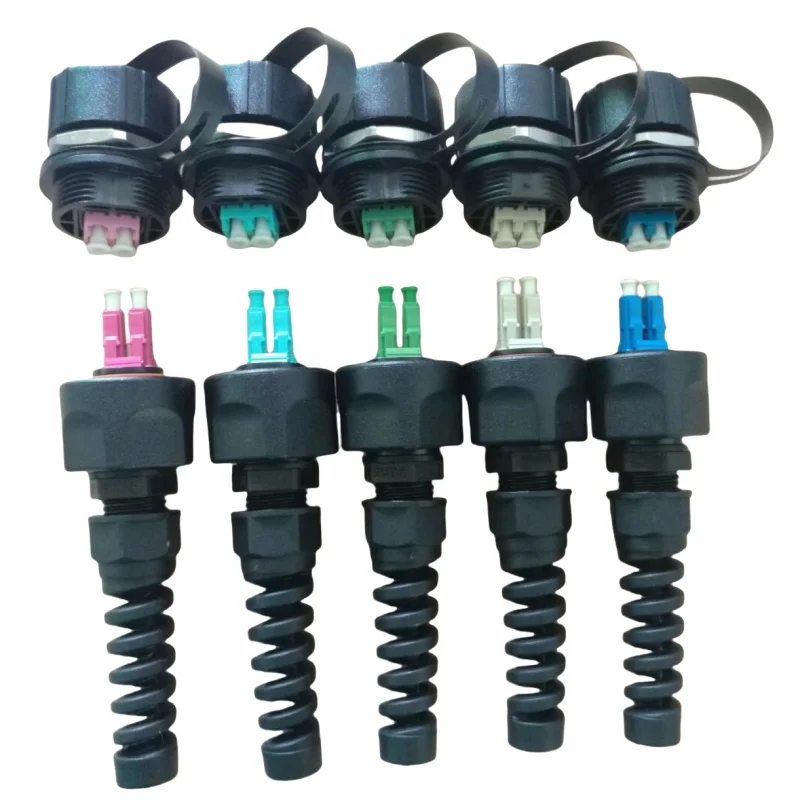

IP67 ODVA optical fiber cable assemblies provide an environmental seal and mechanical protection for outdoor application. ODVA connectors are available in SC Simplex, LC Duplex or MTP/MPO.
They provide quick installation solutions and have good performance on mating with ODVA receptacles.
They provide quick installation solutions and have good performance on mating with ODVA receptacles.
|
Model Number:
|
Fiber Optic Patch Cord
|
Connector Type:
|
ODVA(LC) or ODVA(SC) or ODVA(MPO)
|
|
Use:
|
FTTA, FTTX, FTTH
|
Length:
|
Customized
|
|
Place of Origin:
|
Guangdong, China
|
Brand:
|
OEM/ODM
|
|
Network:
|
Wireless Lan
|
Fiber Type:
|
9/125 Singlemode ...Customized
|
|
Fiber count:
|
Simplex, Duplex
|
Connector Polish:
|
UPC/APC/PC
|
|
Insertion loss:
|
≤0.3dB(UPC/PC)
|
Return loss:
|
UPC/PC ≥50; APC/PC ≥60
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP), TPU
|
Jacket Color:
|
Black...Customized
|
|
Cable Diameter
|
4.8mm/5.0mm/7.0mm
|
Laying Method:
|
Indoor/Outdoor cabling
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
|
Cable Assemblies
|
Pigtail/Simplex/Duplex/Fan-out Patch cord
|
||
Application
Provides superior weather resistance for FTTA and other outdoor applications;
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments;
Can be installs without special tooling; Threaded style coupling; Provides bend protection for installation and long term use.
Supply Ability
Supply Ability：2000 Piece/Pieces per Day
Features

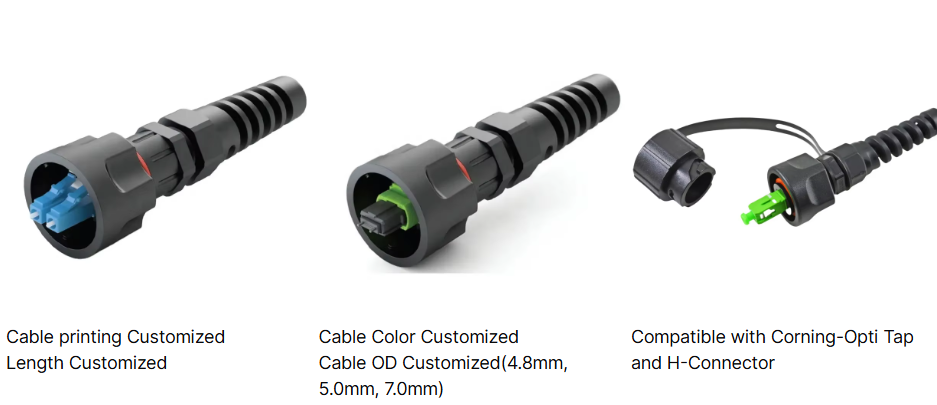

1. Compatible with Corning-Opti Tap and H-Connector;
2. Factory terminated for high performance;
3. Available with one or both ends connectorized;
4. Hybrid (one end with an Opti Tap Connector, one end with standard SC connector) available with or without pulling grip;
5. Available in dielectric or toneable;
6. Designed for aerial, direct-buried or duct installation;
7. IP-68 water and dust protection ;
8. -40℃~85℃ operating temperature;

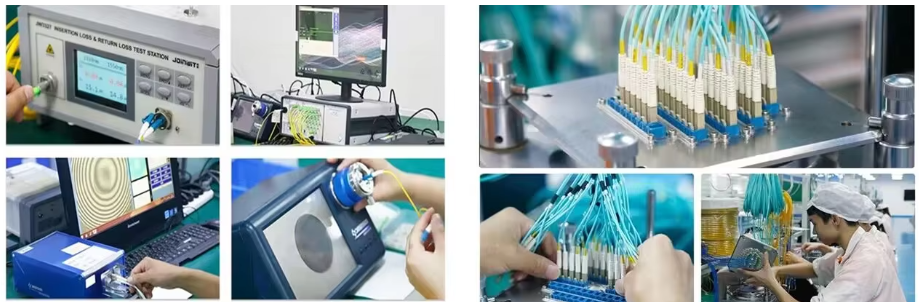

Manufacturing Technique
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
