SC APC to LC UPC Armored Singlemode Duplex 3.0/4.8mm OFNR Fiber for Replacement or Extension of Home Fibre Internet

Short Description:

Product Name: SC/APC to LC/UPC Single Mode 9/125 Duplex Armored 3.0/4.8mm OFNR Optic Patch Cord

Raw Materials: Corning Or YOFC fiber, Us kevlar

Length: Customized Length

Cable Diameter: 3.0/4.8mm or Cusomized

Cable Colors: Yellow or Customized

Using Life: 20 Years

MOQ: 1 PCS

Lead Time: 3 days

Country of Origin: China

Send email to us

Product Detail

Product Tags

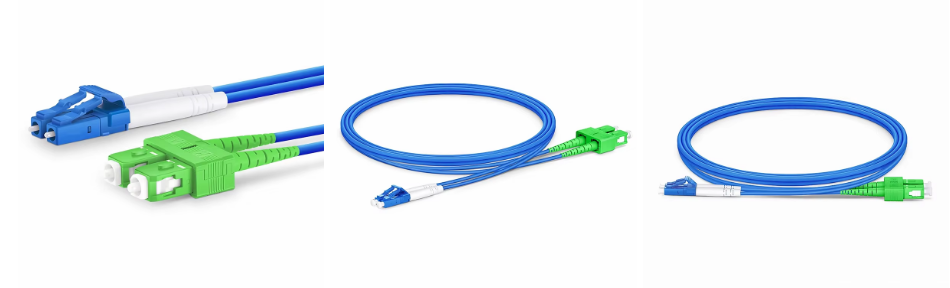

G657A1 Single-Mode Armored Duplex SC APC to LC UPC Fiber Optic Patch Cable

* Helical Steel Armor Provides Additional Crush, Bending, Pulling, and Rodent Protection.
*Eliminate the Need for Conduits to Improve Design Flexibility and Lower Installed Costs.
*Pull-proof Jacket with Max. 225N Tensile Strength.

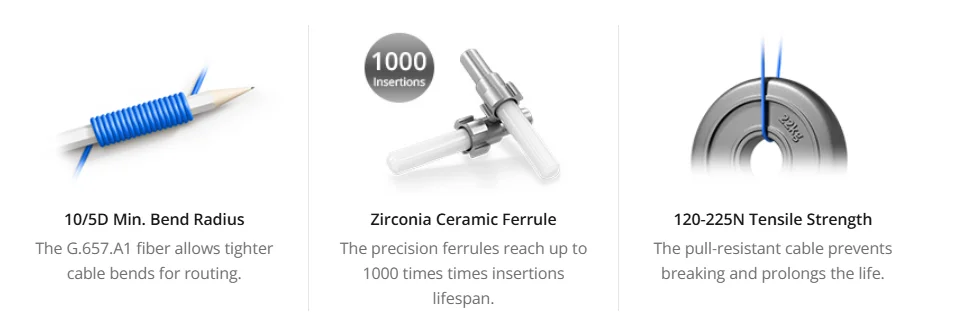

*G.657.A1 Bend Insensitive Fiber & 10/5D (Dynamic/Static) Min. Bend Radius.
*Precision Zirconia Ferrule Connectors Ensure Low Loss.
*Used in Intrabuilding Backbone, Horizontal Installations, and Applications Requiring Extra Ruggedness.

Model Number:	Armored fiber Optic Patch Cord	Connector Type:	SC/APC to LC/UPC Duplex
Use:	FTTX	Length:	Customized
Place of Origin:	Guangdong, China	Brand:	OEM/ODM
Network:	Wireless Lan	Fiber Type:	9/125 OS2 ...Customized
Min. Bend Radius (Fiber Core)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Fiber count:	Duplex	Fiber Grade:	G.657.A1 (Compatible with G.652.D)
Insertion loss:	≤0.3dB	Return loss:	Single Mode APC ≥60dB , Single mode UPC ≥50dB
Jacket:	PVC/OFNR/LSZH/ Plenum(OFNP)	Jacket Color:	Blue...Customized
Cable Diameter:	1.6mm/1.8mm/2.0mm/3.0mm	Laying Method:	Indoor cabling
Operating Temperature (° C):	-10~ + 70	Storage Temperature (° C):	-40 ~ +85
Flame Rating:	Riser	Construction Type:	Single Armored, Stainless Steel Tube
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord

Feature

Trampling Resistance,Moisture Resistance,Gas Resistance,Oil Resistance,Rodents/Pests Resistance

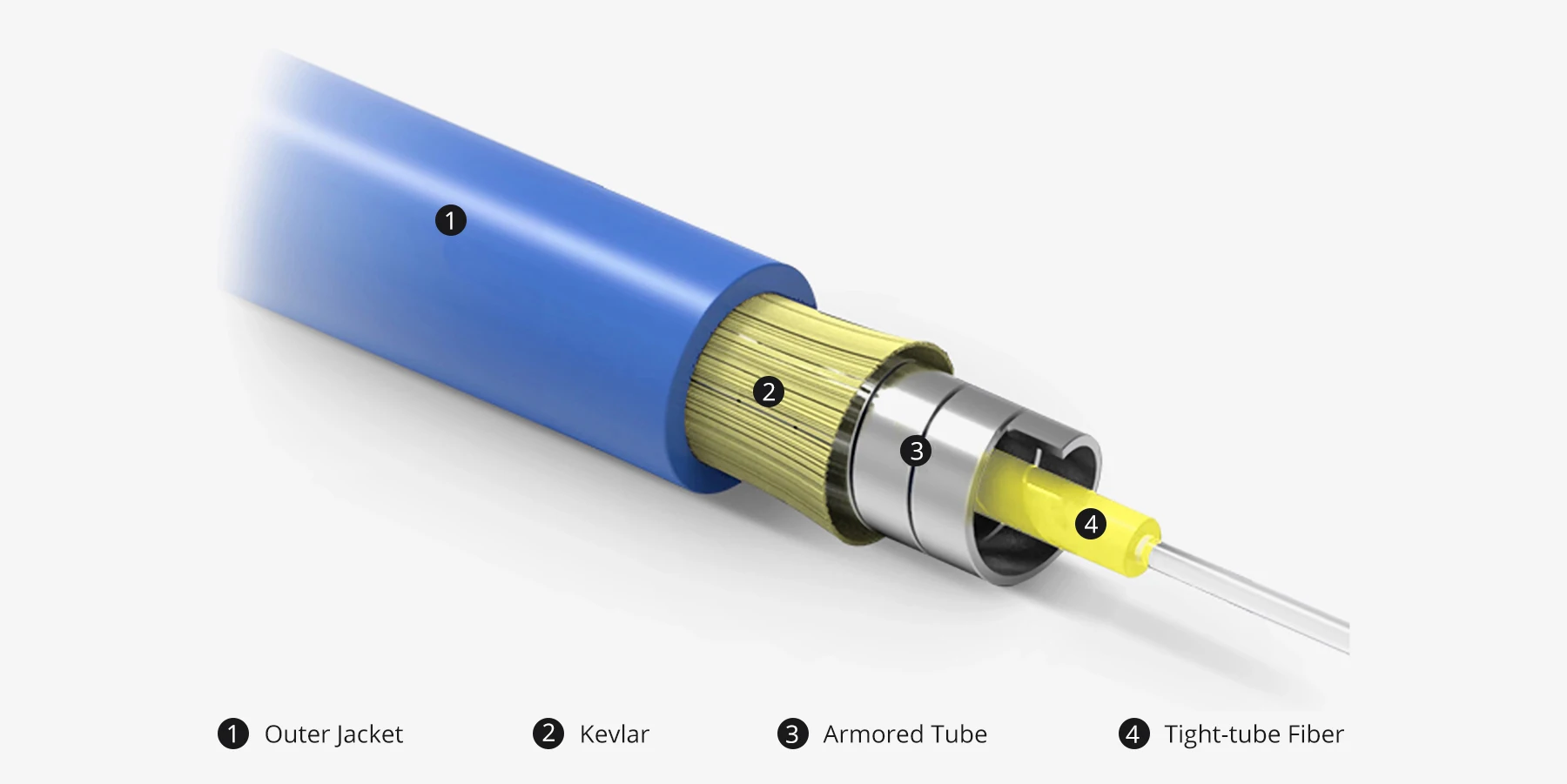

Tough Steel Tube Protects Network Connection Further

Stainless steel tube can provide good protection against optical fiber breakage and be used in a slight oil, gas and moisture environment, which ensure the operation of the network.

Carrier-grade Cable with Guaranteed Quality

Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.

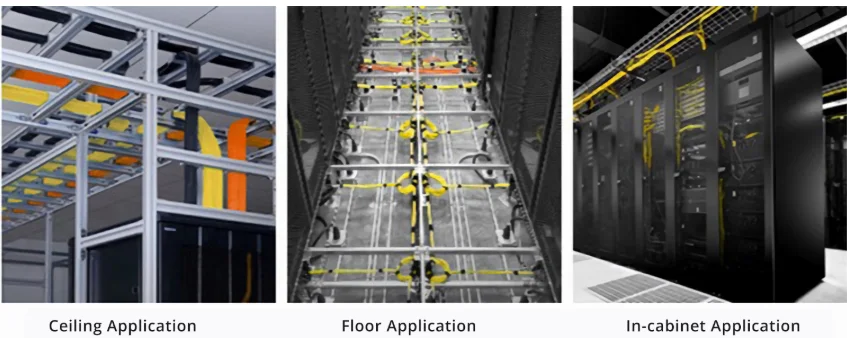

Meet the Various Indoor Installation Needs

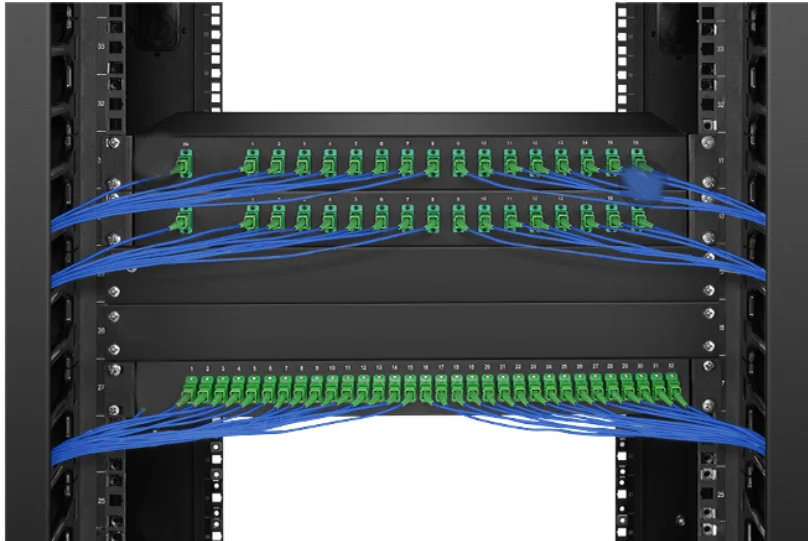

Ideal for network cabinet connection, ceiling wiring and under-floor wiring in the data center.

Flexibility and customization.

Cable printing Customized and Length Customized
Cable Color Customized and Cable OD Customized(1.6mm, 1.8mm, 2.0mm, 3.0mm)
Boot Color & Length Customized

Provide Interconnect and Cross-connect of Application

*Fiber Optic CATV

* Data Centers

* Telecommunications Networks

* Local Area Networks (LAN)

* High Performance Computing (HPC) Networks

* Fiber Channel

* Wide Area Networks (WAN)

Our service

1. Advanced production and testing equipment

2. Professional manufacturer. 100% Tested

3. Fully compliant with IS0 9001:2008 quality management system

4. Your company has rich experience in professional team

5. Provide reliable solutions and satisfying services

6. Careful attention to temperature services

7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment

Supply Ability：2000 Piece/Pieces per Day

Packing & Delivery

Packaging & Shipping

In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
