SC to SC UPC Multimode Duplex Fiber Optic Patch Cord OM1/OM2 62.5/125μm
Products Description

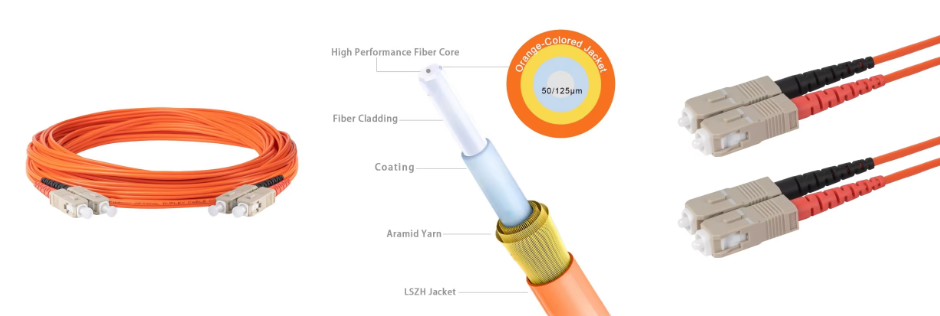

Customized Duplex OM1 62.5/125μm OM2 50/125μm Multimode SC UPC to SC UPC Fiber Optic Patch Cord
The 62.5/125μm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, etc., as well as for interconnecting pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.
|
Model Number:
|
Fiber Optic Patch Cord
|
Connector Type:
|
SC/UPC to SC/UPC
|
|
Use:
|
FTTX
|
Length:
|
Customized
|
|
Place of Origin:
|
Guangdong, China
|
Brand:
|
OEM/ODM
|
|
Wavelength
|
850/1300nm
|
Fiber Type:
|
OM1 62.5/125μm; OM2 50/125μm
|
|
Minimum Bend Radius
|
7.5mm
|
Fiber count
|
Duplex
|
|
Jacket Color:
|
Orange or Customized
|
Connector Polish:
|
UPC
|
|
Insertion loss:
|
≤0.3dB(UPC/PC)
|
Return loss:
|
UPC ≥30dB
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
Cable Diameter:
|
1.6mm/1.8mm/2.0mm/3.0mm
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
|
Cable Assemblies
|
Pigtail//Duplex/Fan-out Patch cord
|
||
- Cable printing Customized and Length Customized
- Cable Color Customized and Cable OD Customized (2.0mm, 3.0mm)
- Can customize LC/SC/FC/ST/CS/E2000/MU Fiber Connector
Connector Type
Various Connectors Support Custom-tailored Installations
Cable Out-Diamater Option
Four Diameters to Meet Different Wiring Needs
1.6mm, 1.8mm, 2.0mm and 3.0mm cable diameters mainly used for indoor installation and cabling.
|
3.0mm Diameter
|
1.6mm/1.8mm/2.0mm Diameter
|
||
|
3.0mm cable has stronger long-term pull tension and instant pull tension.
|
1.6mm, 1.8mm, 2.0mm cable reduces the pressure of the wiring conduit, saving more space
|
Application:
Data Center
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network
Supply Ability
Supply Ability：2000 Piece/Pieces per Day
Features
Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and
stability Good in repeatability and exchangeability
stability Good in repeatability and exchangeability
Manufacturing Technique
