Senko MPO Female APC to 2×12 MPO Female APC SM 2.4mm Fiber Patch Cord for FTTH
Products Description
16-Strand MPO Female/APC to 2 x 12-Strand MPO Female /APC 9/125 Singlemode Breakout Fiber Cable
MPO breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.
Product Paramenters
|
Connector Type
|
MPO Female to 2x 12Strand MPO Female
|

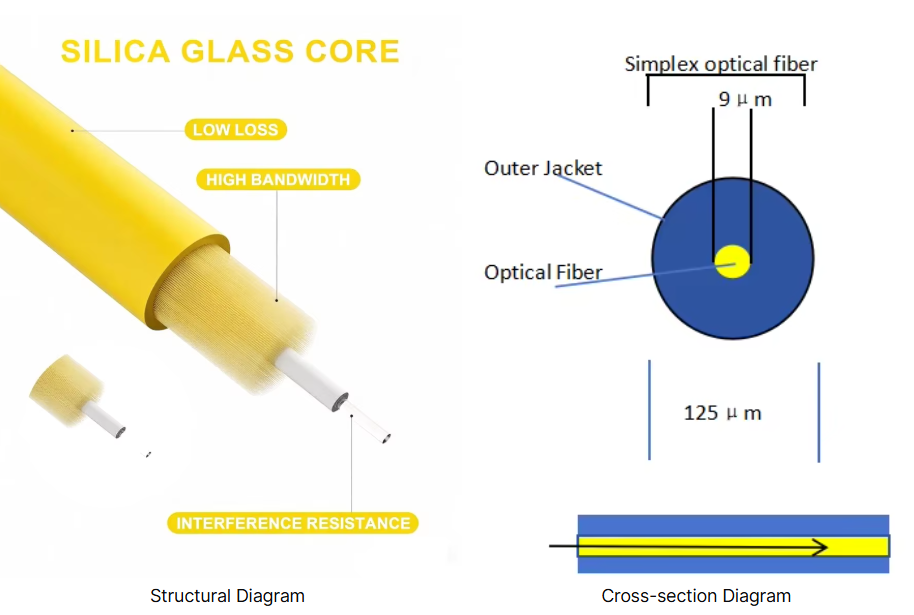

Fiber Type
|
G657A1 9/125μm
|
|
Wavelength
|
1310/1550nm
|
Fiber Count
|
16 Fibers-12Fibers
|
|
Polish Type
|
APC
|
Minimum Bend Radius
|
10mm
|
|
MPO Connector Count
|
1-2
|
||
|
MPO Connector IL
|
0.20dB Max
|
MTP Connector RL
|
≥60dB
|
|
Attenuation at 1310nm
|
≤3.5dB/km
|
Attenuation at 1550nm
|
≤3.5dB/km
|
|
Jacket OD
|
2.4mm
|
Cable Jacket
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
|
Polarity
|
Type B
|
||
|
Installation Tensile Load
|
66 N
|
||
|
Tensile Strength (Long/Short Term)
|
200N/660N
|
||
|
Operating Temperature (° C)
|
-10~ + 70
|
||
|
Storage Temperature (° C)
|
-40 ~ +85
|
||
|
Package
|
1PC/bag
|
||
Features:
Used to connect equipment that utilizes MTP style and LC connectors and OM5 50/125 Multimode cabling

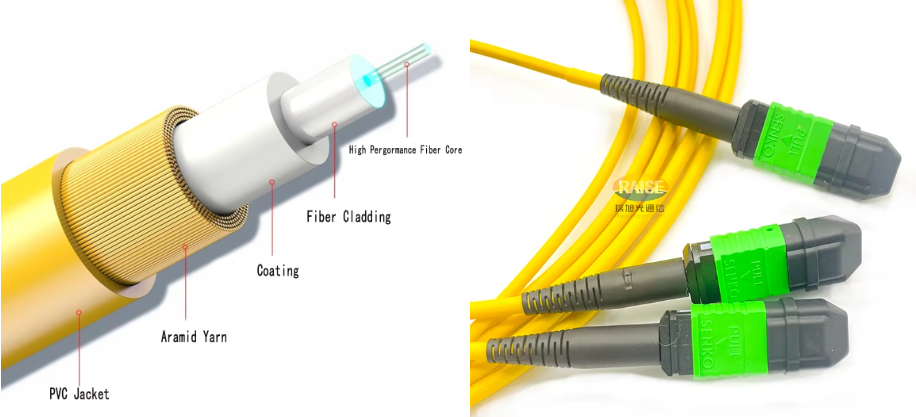

Double jacket sheath further protects network connections
Double jackets with greater pressure resistance protect the fiber core and increase the strength and durability of the fiber.
Excellent workmanship ensures stable transmission
Senko MTP cables provide state-of-the-art multi-fiber and mechanical properties.
MPO Connector Type
MPO connector can choose Male or Female

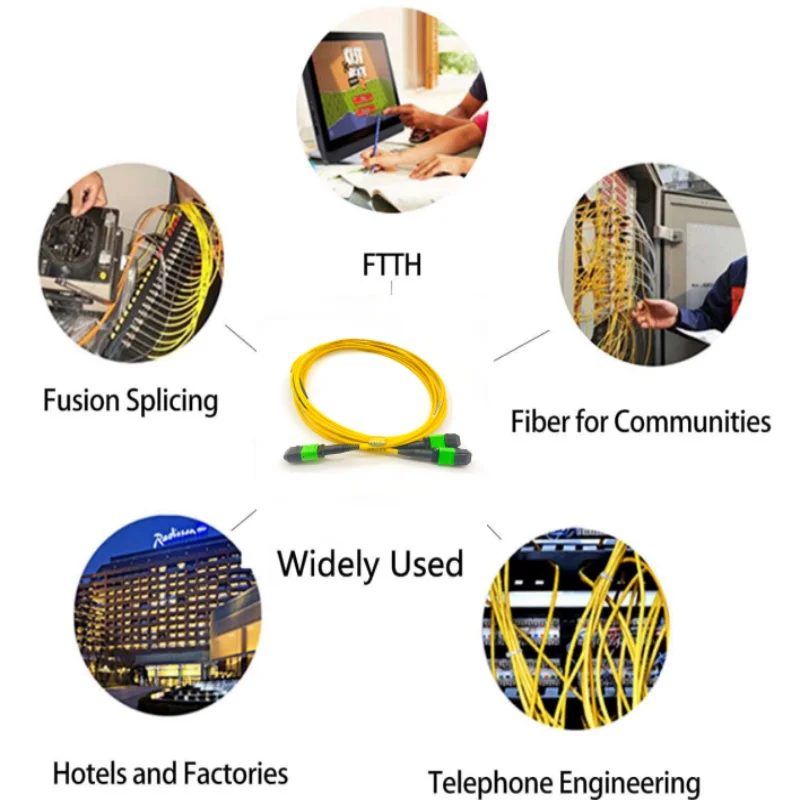

Application
Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, and network applications.
Packing & Delivery
Packaging & Shipping
In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
Manufacturing Technique
Our service
1. Advanced production and testing equipment 2. Professional manufacturer. 100% Tested .
3. Fully compliant with IS0 9001:2008 quality management system .
4. Your company has rich experience in professional team.
5. Provide reliable solutions and satisfying services .
6. Careful attention to temperature services.
7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment.
3. Fully compliant with IS0 9001:2008 quality management system .
4. Your company has rich experience in professional team.
5. Provide reliable solutions and satisfying services .
6. Careful attention to temperature services.
7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment.
Supply Ability：2000 Piece/Pieces per Day
