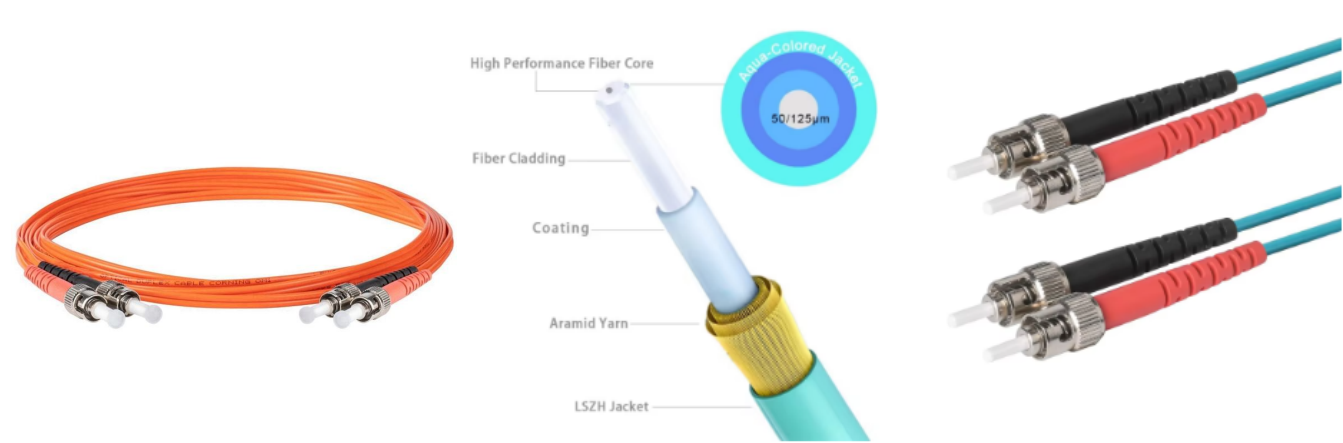

ST to ST UPC Multimode Duplex Fiber Optic Patch Cord OM1/OM2 9/125μm
Products Description
Customized Duplex OS1/OS2 9/125μm Singlemode ST UPC to ST UPC Fiber Optic Patch Cord
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities,telecommunications rooms, data centres, and at the desk.This G657A1 fibre patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
The bend insensitive fibre patch cable has less attenuation when bent or twisted compared with traditional fibre patch cable and this will make the installation and maintenance more efficient.
The bend insensitive fibre patch cable has less attenuation when bent or twisted compared with traditional fibre patch cable and this will make the installation and maintenance more efficient.
|
Model Number:
|
Fiber Optic Patch Cord
|
Connector Type:
|
ST/UPC to ST/UPC
|
|
Use:
|
FTTX
|
Length:
|
Customized
|
|
Place of Origin:
|
Guangdong, China
|
Brand:
|
OEM/ODM
|
|
Wavelength
|
1310/1550nm
|
Fiber Type:
|
OS1/OS2 9/125μm
|
|
Minimum Bend Radius
|
7.5mm
|
Fiber count
|
Duplex
|
|
Jacket Color:
|
Orange or Customized
|
Connector Polish:
|
UPC
|
|
Insertion loss:
|
≤0.3dB(UPC/PC)
|
Return loss:
|
UPC ≥30dB
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
Cable Diameter:
|
1.6mm/1.8mm/2.0mm/3.0mm
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
|
Cable Assemblies
|
Pigtail//Duplex/Fan-out Patch cord
|
||
Cable printing Customized and Length Customized
Cable Color Customized and Cable OD Customized (2.0mm, 3.0mm)
Can customize LC/SC/FC/ST/CS/E2000/MU Fiber Connector
Connector Type
Various Connectors Support Custom-tailored Installations

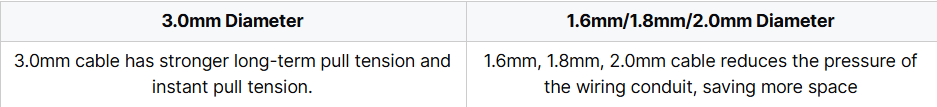

Cable Out-Diamater Option
Four Diameters to Meet Different Wiring Needs
1.6mm, 1.8mm, 2.0mm and 3.0mm cable diameters mainly used for indoor installation and cabling.
Application：
Data Center
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network
Supply Ability
Supply Ability：2000 Piece/Pieces per Day
Features
Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability
Manufacturing Technique
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
