ST UPC to LC UPC Multimode Duplex OM3/OM4 OFNR Fiber Patch Cable | High Quality FTTH Jumper 1.6mm 2mm 3mm

Short Description:

Raw Materials: Corning Or YOFC fiber, Us kevlar

Length: Customized Length

Cable Diameter: 1.6mm, 1.8mm, 2.0mm, 3.0mm

Cable Colors: Aqua or Customized

Jacket:PVC(OFNR)/LSZH/Plenum(OFNP)

Using Life: 20 Years

MOQ: 1 PCS

Lead Time: 3 days

Country of Origin: China

Send email to us

Product Detail

Product Tags

Products Description

50/125μm OM3/OM4 Multimode ST/UPC-LC/UPC Bend Insensitive 2/3mm Fiber Optic Cable

The 50/125μm OM3/OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. This fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Model Number:	Fiber Optic Patch Cord	Connector Type:	ST/UPC to LC/UPC Duplex
Use:	FTTX	Length:	Customized
Place of Origin:	Guangdong, China	Brand:	OEM/ODM
Network:	Wireless Lan	Fiber Type:	OM3/OM4 ...Customized
Min. Bend Radius (Fiber Core)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Fiber count:	Duplex	Polish:	UPC/APC/PC
Insertion loss:	≤0.3dB(UPC/APC/PC)	Return loss:	≥35dB
Jacket:	PVC/OFNR/LSZH/Plenum(OFNP)	Jacket Color:	Auqa...Customized
Cable Diameter	0.9mm/1.2mm/1.6mm/2.0mm/3.0mm	Laying Method:	Indoor cabling
Operating Temperature (° C)	-10~ + 70	Storage Temperature (° C)	-40 ~ +85
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord

Features

Featuring low insertion loss and high return loss, this connector is compact, lightweight, and designed for high-density connections. Made of precision-engineered plastic materials, it offers excellent reliability, stability, repeatability, and interchangeability.

Build a Stable and Robust Fiber Optic Network

High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.

Our 10Gb ST to LC Fiber Optic Cables

Superior Quality Material

* PVC/LSZH plastic, shiny,tough,environmental protection.
* Aramidl cable,non-toxic,fire retardant,core protection and low smoke.
* PBT plastic materials and fine copper,durable,high temperature resistant.

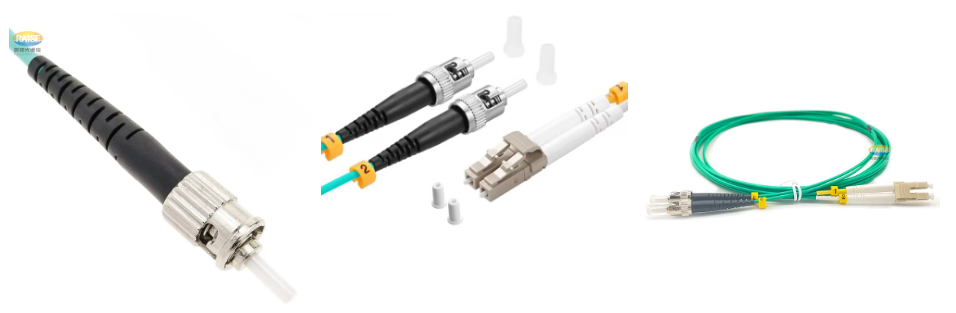

ST to LC Connector

* High-precision Ceramic ferrule, Low insertion loss, large return loss,strong stability and interchangeability.
* Protective Dust Cap, prevent the fiber line and ensure the end of the plug will not damage the product parameters

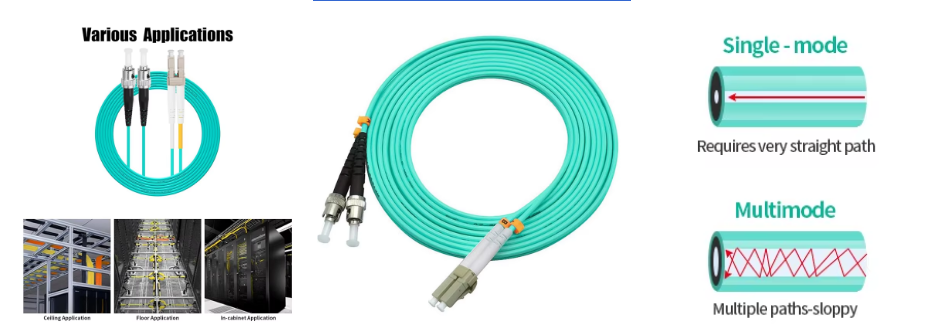

Multi-mode

* Light travels way: Light travels along a straight line without reflection. Multi-mode fiber carry multi-channel optical signal
transmission.
* Core size: the core size of multi-mode cable is 50.0 micron while a single module is 9.0 micron.

Customization

Cable printing Customized and Length Customized
Cable Color Customized and Cable OD Customized(0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm)
Boot Color & Length Customized

Application

Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, telecommunication network,CATV ,LAN and WAN ,FTTX ,Broadband network.
