16 Core MPO Female APC to MPO Male APC Jumper OM3 OM4 Multimode 3.0mm LSZH Fiber Cable

Short Description:

Raw Materials: Corning Or YOFC fiber, Us kevlar

Fiber Mode: Multimode 50/125 OM3/OM4

Length: Customized Length

Cable Diameter: 3mm

Cable Colors: Auqa or Customized

Using Life: 20 Years

MOQ: 1 PCS

Lead Time: 3 days

Country of Origin: China

Send email to us

Product Detail

Product Tags

Products Description

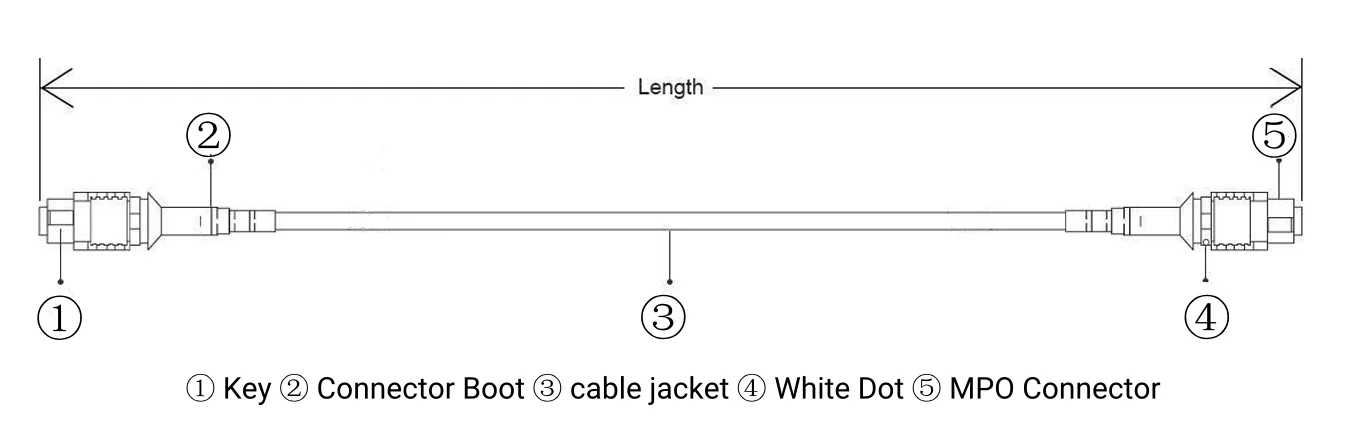

1m (3ft) MPO Jumper, MPO-16 APC (Female/Male) to MPO-16 APC (Female/Male), 16 Fibers, Multimode (OM4/OM3), LSZH 3.0mm Aqua

MPO jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Product Paramenters

Connector Type A	MPO Female/ Male	Connector Type B	MPO Female/Male
Wavelength	850/1300nm	Fiber Type	50/125 OM4
Polish Type	APC	Minimum Bend Radius	7.5mm
MPO/MTP Connector IL	≤0.35dB	MPO/MTP Connector RL	≥35dB
Fiber Count	16 Fibers	Cable Jacket	OFNR(PVC)/LSZH/Plenum(OFNP)
Jacket OD	3.0mm
Installation Tensile Load	66 N
Tensile Strength (Long/Short Term)	80N/240N
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1PC/bag

Features: Used to connect equipment that utilizes MPO connectors and OM4/OM3 50/125 Multimode cabling

● Type A, Type B and Type C Polarity Options available ● Each cable 100% tested for low insertion loss and back reflection ● Custom lengths and cable colors available ● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options ● Reduced Insertion Loss by up to 50% ● High Durability ● High Temperature Stability ● Good Exchangeability ● High Density design cuts down on installation costs ● Designed for 40Gig QSFP systems

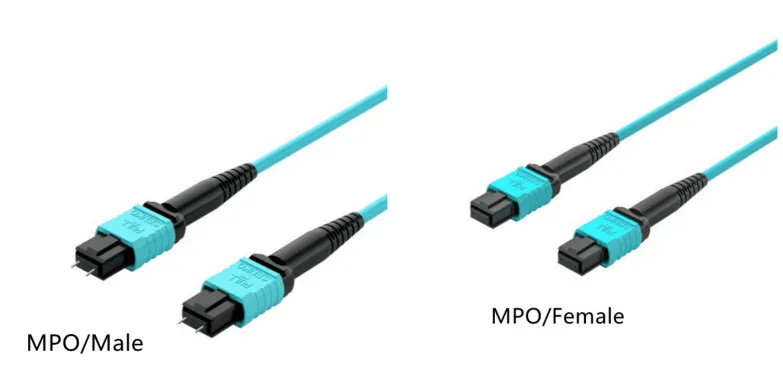

MPO/MTP Connector Type

MPO/MTP connector can choose Male or Female

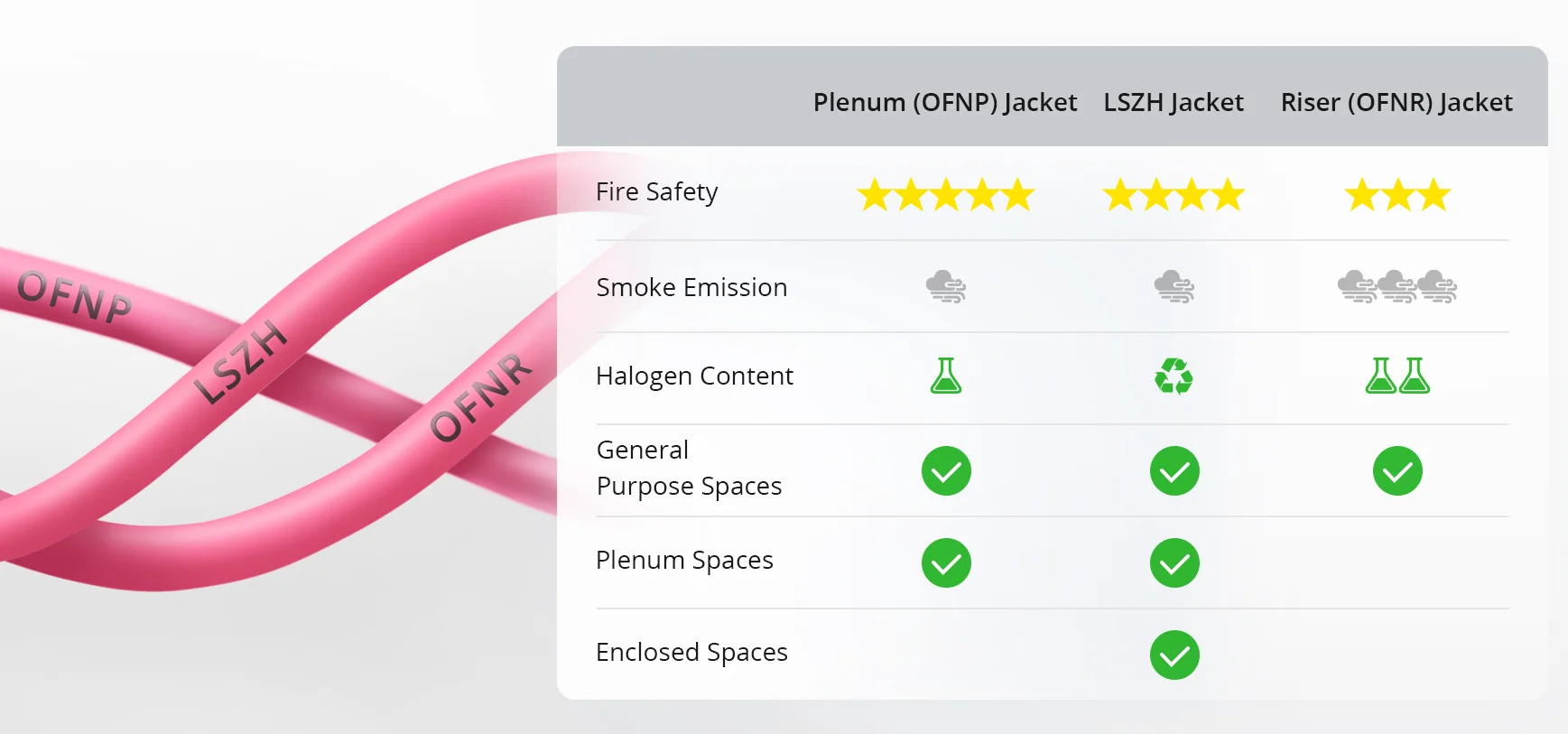

Cable Jacket Option: Plenum(OFNP), Low Smoke Zero Halogen(LSZH), Riser(OFNR) rated applications.

Fiber Polarity Guidance

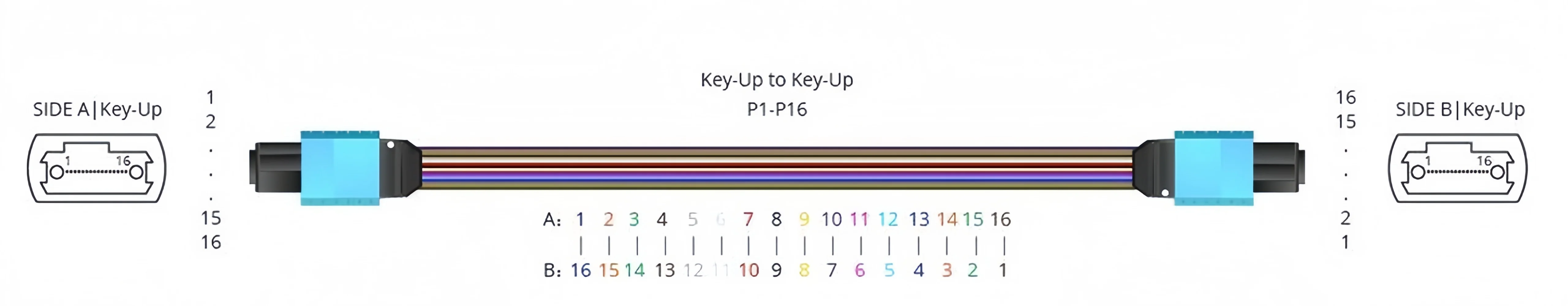

16 Fibers MTP/MPO Fiber Polarity

Utilizing the same external footprint as the existing traditional 12-fiber MT ferrule, the MPO-16 consists of a ferrule with 16 fibers in single row, leveraging all the proven MPO ferrule technology in a higher-density format. A unique offset keying feature is designed into the connector to ensure proper mating without inadvertently connecting 16-fiber hardware with standard MPO-complianthardware.

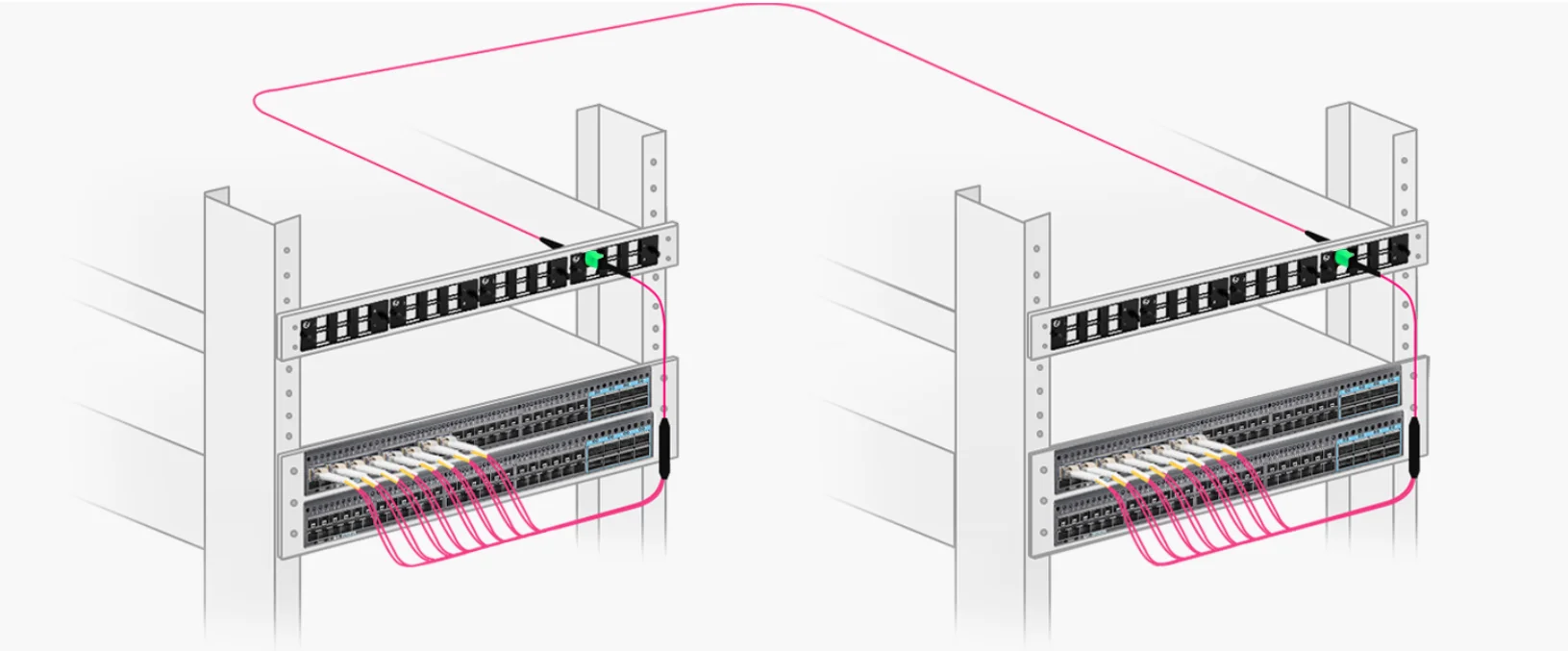

High Density Cabling for Various Environments

Minimize waste, optimize cable management, and speed deployment for lower installation costs.(Data Centers, Storage Area Networks (SAN), Communications Rooms)
