Custom MPO/MTP to 8 LC 10/40/100G OM3 OM4 Breakout Cable LSZH for Data Center
Products Description

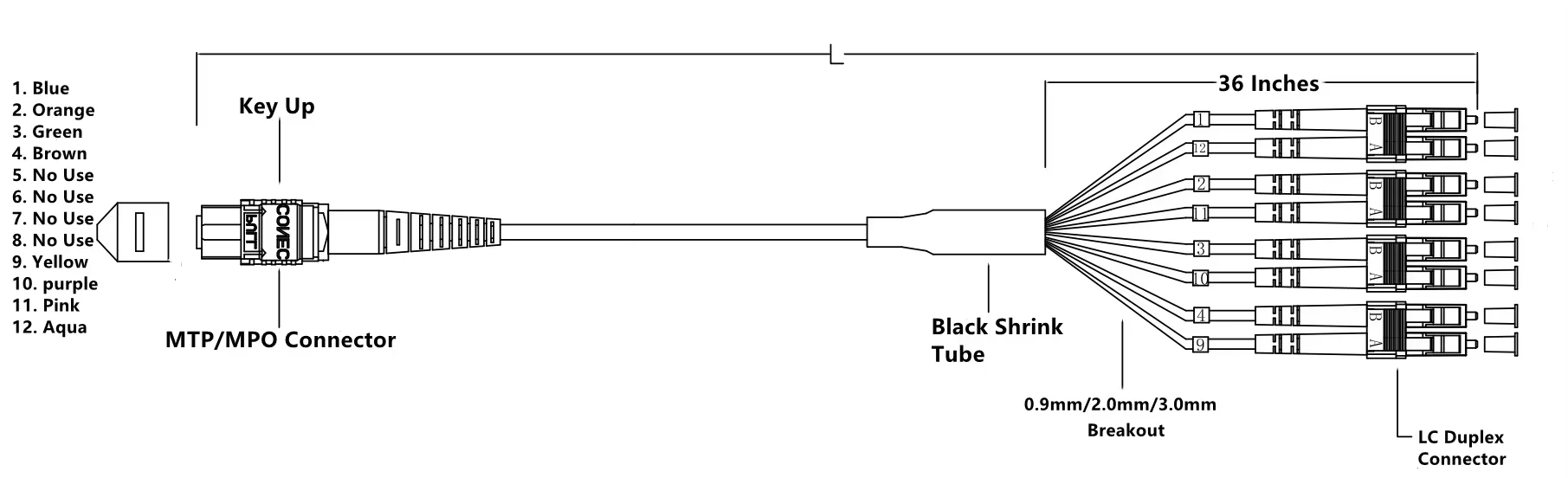

8Cores MPO Female to 4 x Duplex LC/UPC 50/125 Multimode Breakout Fiber Cable

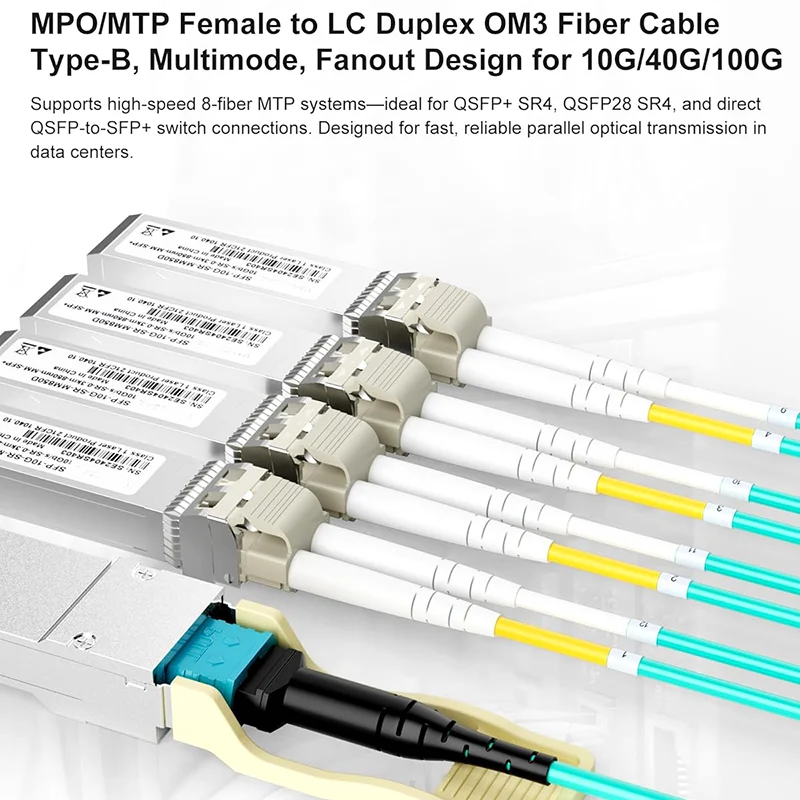

MPO breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR,400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.

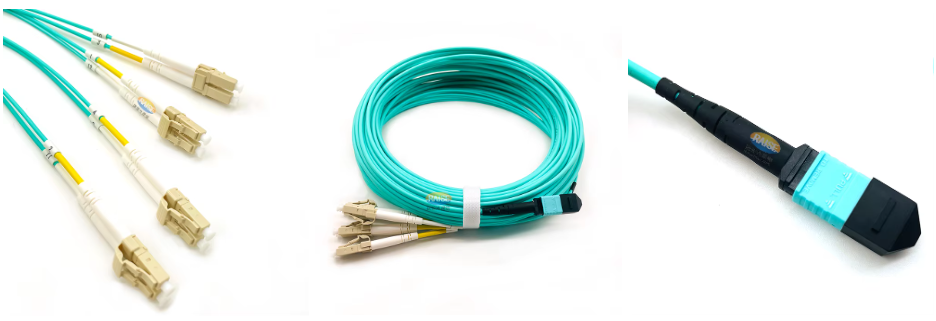

MPO-LC Fiber cable
Product Paramenters
|
Connector Type
|

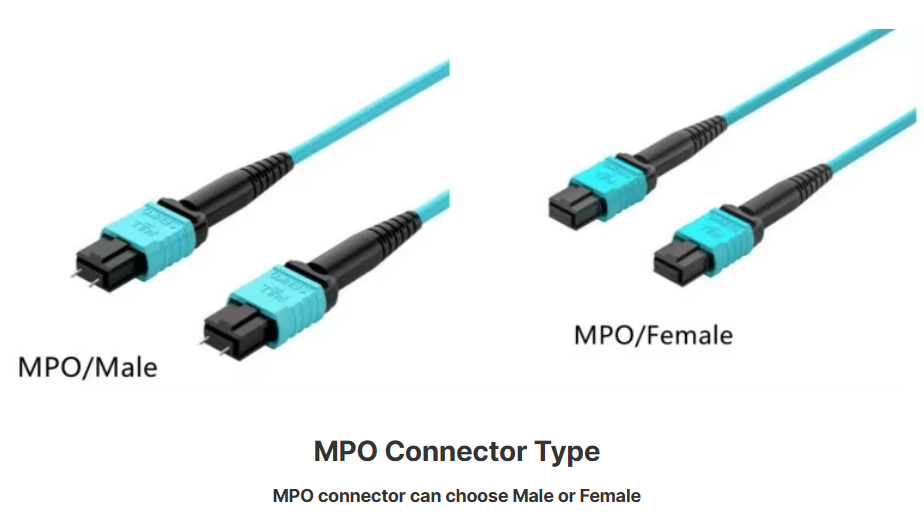

MPO/Female to 4 Duplex LC/UPC
|
Fiber Type
|

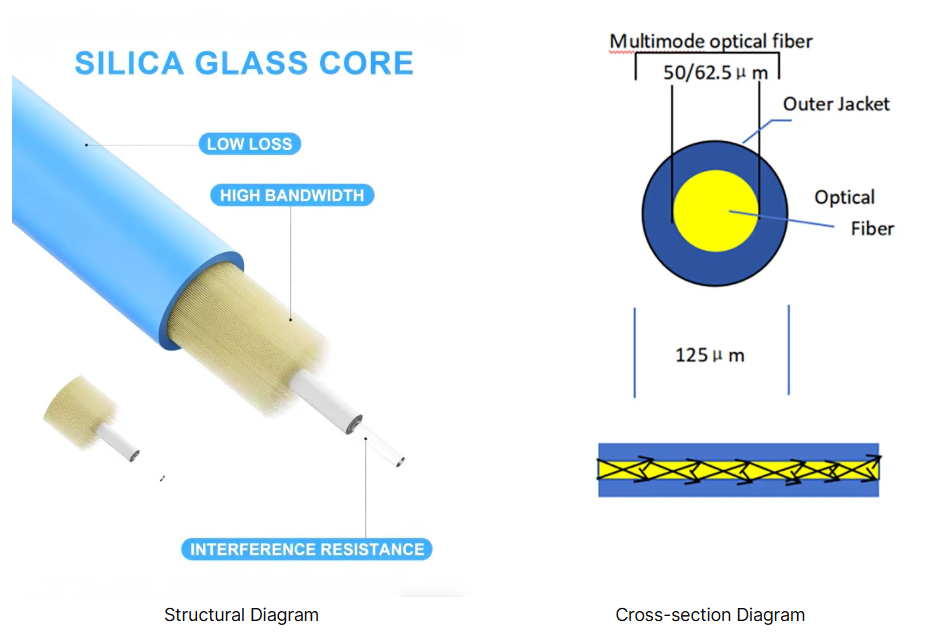

OM4 50/125μm
|
|
Wavelength
|
850/1300nm
|
Fiber Count
|
8 Fibers (Base-8)
|
|

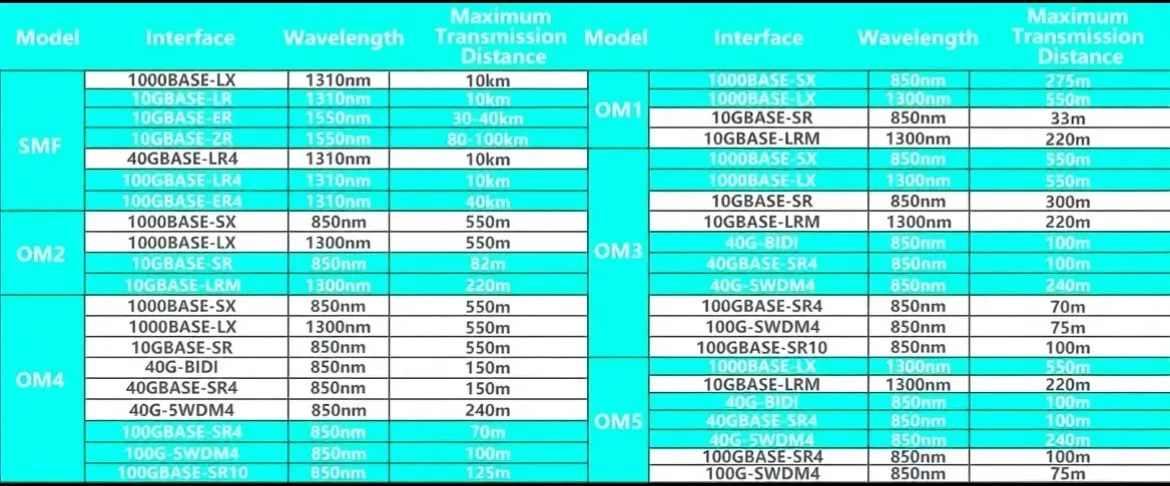

40G Ethernet Distance
|
440m at 850nm
|
100G Ethernet Distance
|
150m at 850nm
|
|
Polish Type
|
UPC to UPC
|
Minimum Bend Radius
|
7.5mm
|
|
MTP Connector Count
|
1
|
LC Connector Count
|
4
|
|
MTP Connector IL
|
0.20dB Max
|
LC Connector IL
|
≤0.35dB
|
|
MTP Connector RL
|
≥20dB
|
LC Connector RL
|
≥35dB
|
|
Attenuation at 850nm
|
≤3.5dB/km
|
Attenuation at 1300nm
|
≤3.5dB/km
|
|
Jacket OD
|
2.0mm
|
Cable Jacket
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
|
Polarity
|
Type B
|
||
|
Installation Tensile Load
|
66 N
|
||
|
Tensile Strength (Long/Short Term)
|
80N/240N
|
||
|
Operating Temperature (° C)
|
-10~ + 70
|
||
|
Storage Temperature (° C)
|
-40 ~ +85
|
||
|
Package
|
1PC/bag
|
||

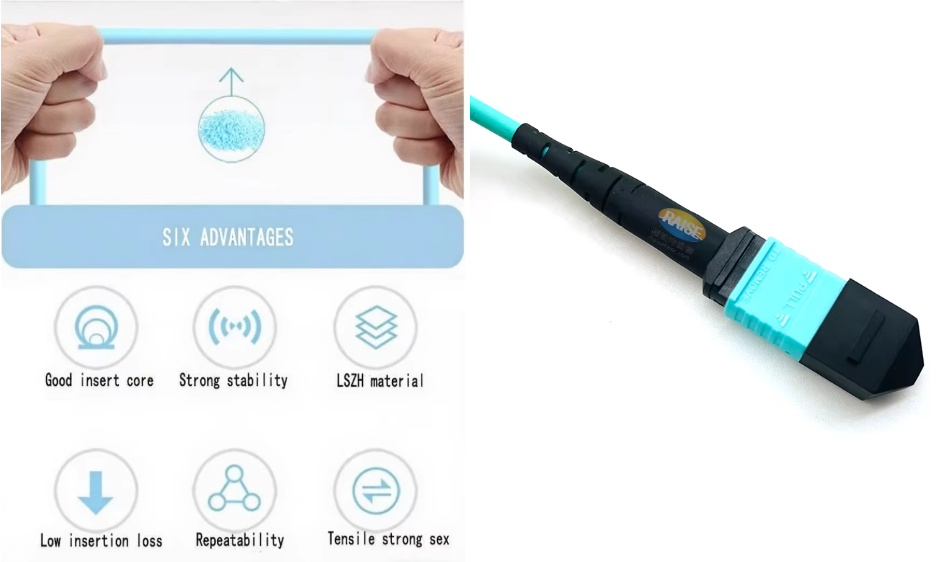

Features:
Used to connect equipment that utilizes MPO style and LC connectors and OM5 50/125 Multimode cabling

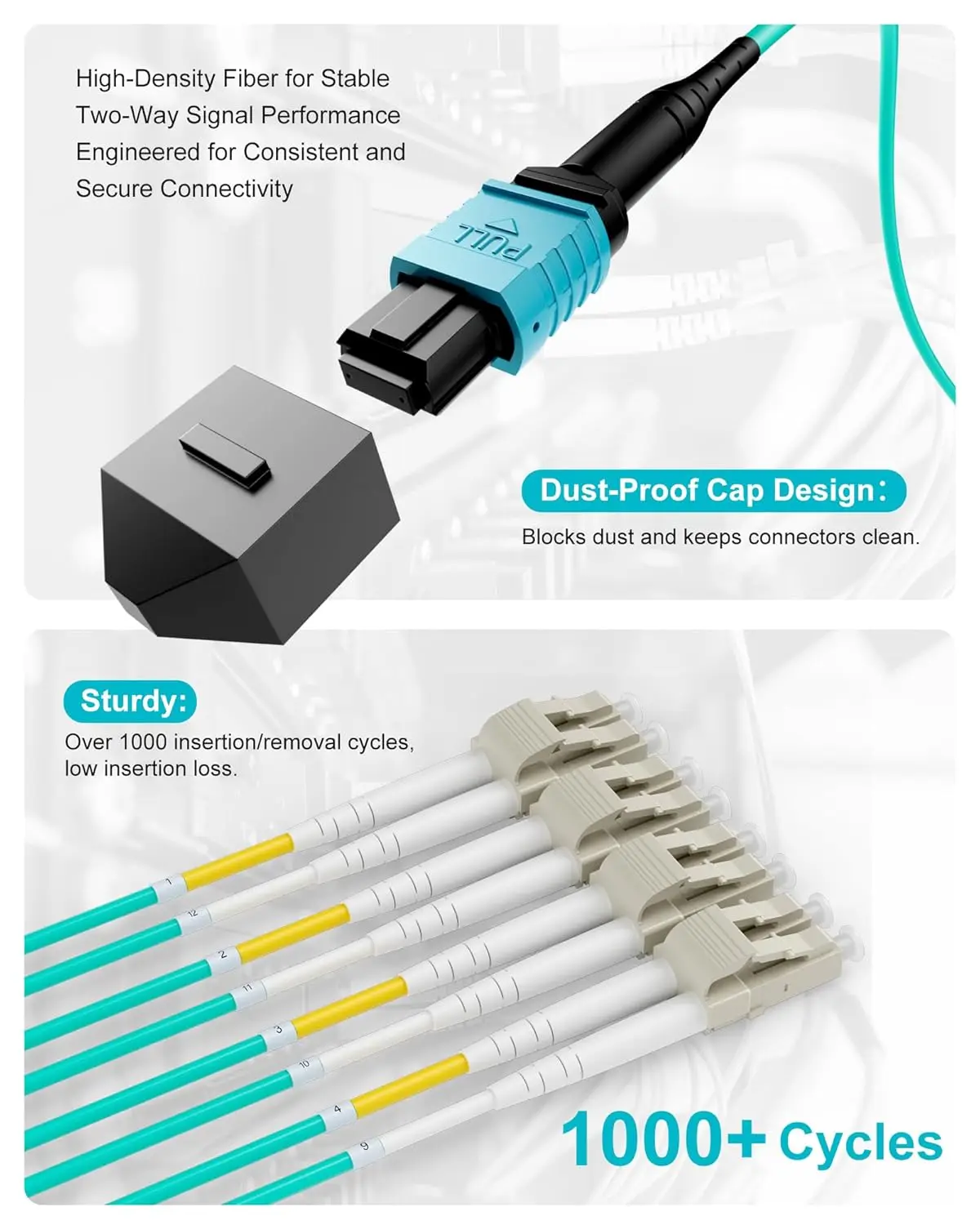

Double jacket sheath further protects network connections
Double jackets with greater pressure resistance protect the fiber core and increase the strength and durability of the fiber.
Excellent workmanship ensures stable transmission
MPO/LC cables provide state-of-the-art multi-fiber and mechanical properties.
Customized services
- Cable printing Customized and Length Customized
- Cable Color CustomizedCable OD Customized(0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm)
- Boot Color & Length Customized
Application
Packing & Delivery
Packaging & Shipping
In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
Manufacturing Technique
Our service
1. Advanced production and testing equipment.
2. Professional manufacturer. 100% Tested.
3. Fully compliant with IS0 9001:2008 quality management system.
4. Your company has rich experience in professional team.
5. Provide reliable solutions and satisfying services.
6. Careful attention to temperature services.
7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment.
