IP67 Waterproof Hardened LC Connector FTTA Single Mode Duplex Outdoor/Indoor Fiber Optic Patch Cord
Products Description

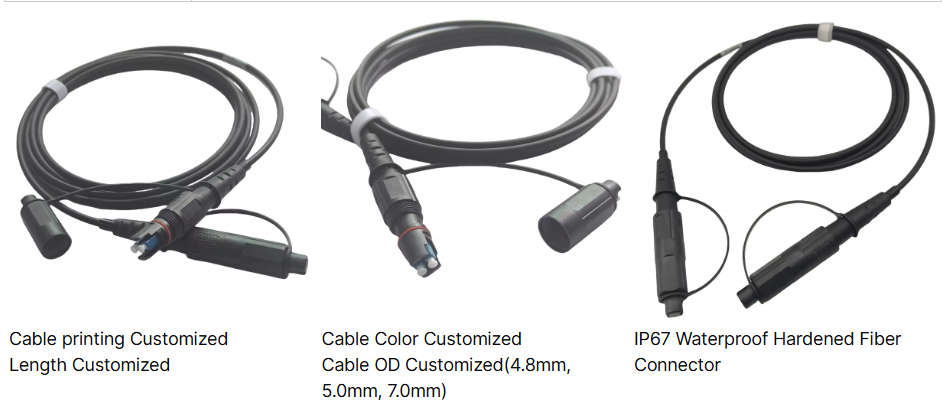

LC/UPC IP67 Waterproof Hardened Fiber Connector Fiber Optic Patch cord
Fiber Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling"
|
Model Number:
|
Fiber Optic Patch Cord
|
Connector Type:
|
IP67 Waterproof Hardened LC
|
|
Use:
|
FTTA, FTTX, FTTH
|
Length:
|
Customized
|
|
Place of Origin:
|
Guangdong, China
|
Brand:
|
OEM/ODM
|
|
Network:
|
Wireless Lan
|
Fiber Type:
|
9/125 Singlemode ...Customized
|
|
Fiber count:
|
Duplex
|
Connector Polish:
|
UPC/APC/PC
|
|
Insertion loss:
|
≤0.3dB(UPC/PC)
|
Return loss:
|
UPC/PC ≥50; APC/PC ≥60
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP), TPU
|
Jacket Color:
|
Black...Customized
|
|
Cable Diameter
|
4.8mm/5.0mm/7.0mm
|
Laying Method:
|
Indoor/Outdoor cabling
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
|
Cable Assemblies
|
Pigtail/Simplex/Duplex/Fan-out Patch cord
|
||
Customizable
Application
Provides superior weather resistance for FTTA and other outdoor applications;
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments;
Can be installs without special tooling; Threaded style coupling; Provides bend protection for installation and long term use.
Supply Ability
Supply Ability：2000 Piece/Pieces per Day
Features
1. Compatible with Corning-Opti Tap and H-Connector;
2. Factory terminated for high performance;
3. Available with one or both ends connectorized;
4. Hybrid (one end with an Opti Tap Connector, one end with standard SC connector) available with or without pulling grip;
5. Available in dielectric or toneable; 6. Designed for aerial, direct-buried or duct installation;
7. IP-67 water and dust protection ;
8. -40℃~85℃ operating temperature;

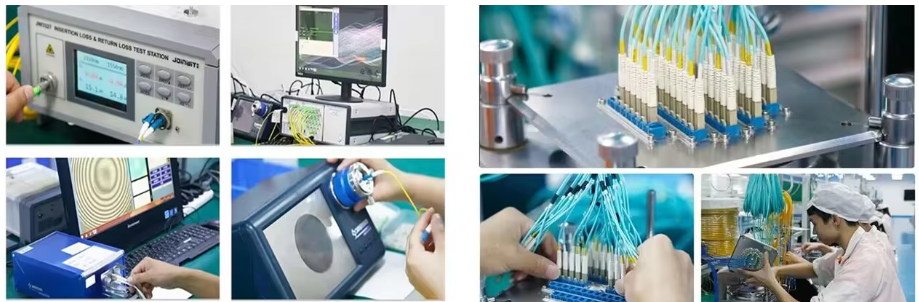

Manufacturing Technique
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
