LC to LC Armored Outdoor Fiber Optic Cable Single Mode Simplex 9/125um (OS1/OS2 Compatible) Low Friction LSZH Black

Short Description:

Raw Materials: Corning Or YOFC fiber, Us kevlar

Length: Customized Length able

Cable Diameter: 0.9mm/1.2mm/1.6mm/2.0mm/3.0mm

Cable Colors: Black,Aqua, Grey, Yellow, Blue or Customized

Send email to us

Product Detail

Product Tags

Products Description

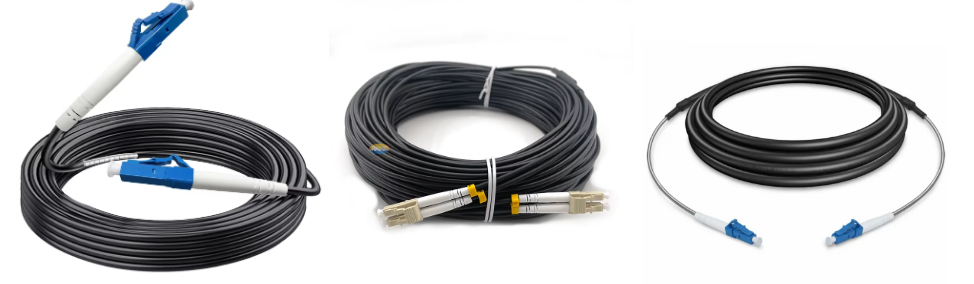

50/125μm Armored OS1/OS2 Singlemode LC/UPC-LC/UPC 3mm Fiber Optic Cable

* Single Mode Outdoor Fiber Optic Cable with Low Friction LSZH jacket: Made of Ultra Low Friction flame retardant LSZH jacket (Coefficient of Friction μ<0.2), which allows you quick and easy installation and higher cable density in conduit.

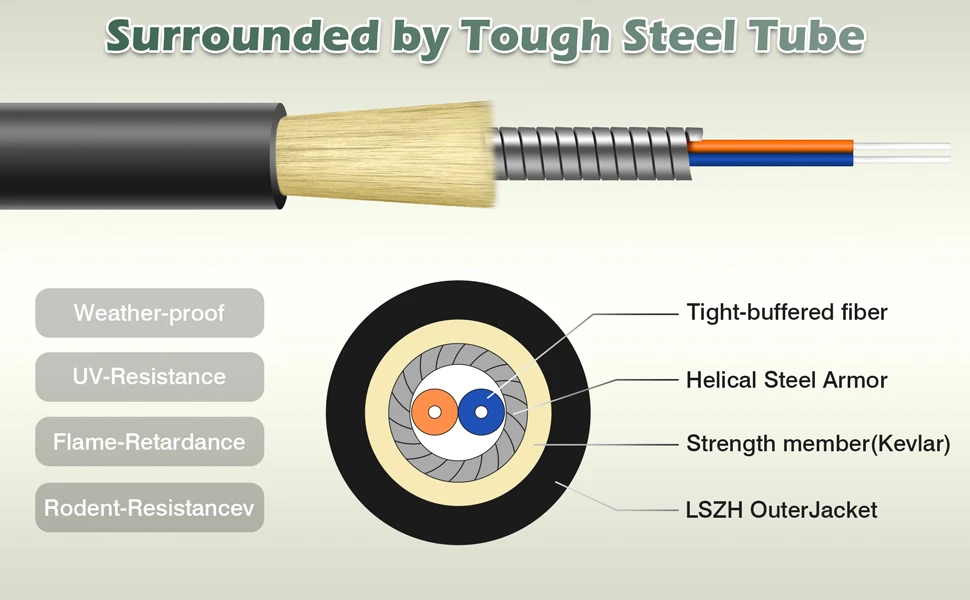

* Rugged OS2 Duplex Armored Fiber Cable: Built-in Helical Steel Armor, provides additional crush and rodent protection
* Min. Bend Radius (Fiber Core): 10mm, Cable Diameter: 3.0mm
* Terminated with Corning precision ceramic ferrule connectors ensure low signal loss

Model Number:	Armored Fiber Optic Patch Cord	Connector Type:	LC/UPC to LC/UPC Simplex
Use:	FTTX	Length:	Customized
Place of Origin:	Guangdong, China	Brand:	OEM/ODM
Network:	Wireless Lan	Fiber Type:	OS1/OS2 ...Customized
Min. Bend Radius (Fiber Core)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Fiber count:	Simplex	Polish:	UPC/APC/PC
Insertion loss:	≤0.3dB(UPC/APC/PC)	Return loss:	UPC/PC ≥50dB; APC≥60dB
Jacket:	PVC/OFNR/LSZH/Plenum(OFNP)	Jacket Color:	Black...Customized
Cable Diameter	0.9mm/1.2mm/1.6mm/2.0mm/3.0mm	Laying Method:	outdoor cabling
Operating Temperature (° C)	-20~ + 70	Storage Temperature (° C)	-40 ~ +85
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord

Features

Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and
stability Good in repeatability and exchangeability

Build a Stable and Robust Fiber Optic Network

High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.

Our 10Gb LC to LC Fiber Optic Cables

Superior Quality Material

* LSZH plastic, shiny,tough,environmental protection.
* Aramidl cable,non-toxic,fire retardant,core protection and low smoke.
* durable,high temperature resistant.

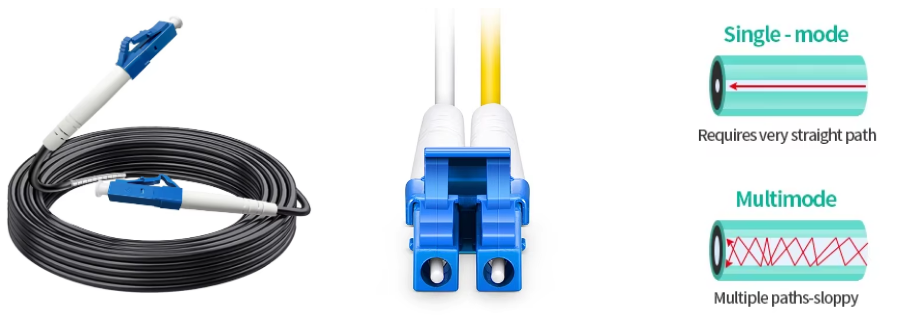

LC to LC Connector

* High-precision Ceramic ferrule, Low insertion loss, large return loss,strong stability and interchangeability.
* Protective Dust Cap, prevent the fiber line and ensure the end of the plug will not damage the product parameters

Multi-mode

* Light travels way: Light travels along a straight line without reflection. Multi-mode fiber carry multi-channel optical signal
transmission.
* Core size: the core size of multi-mode cable is 50.0 micron while a single module is 9.0 micron.

10/5D Bend Radius:The fiber allows tighter cable bends for slack storage and routing.

200-600N Tensile Strength:the pull-resistant cable prolongs the service life.

3000N Crush Strength Great:pressure resistance avoids destruction by external forces.

customization

Cable printing Customized and Length Customized
Cable Color Customized and Cable OD Customized(0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm)
Boot Color & Length Customized

Application

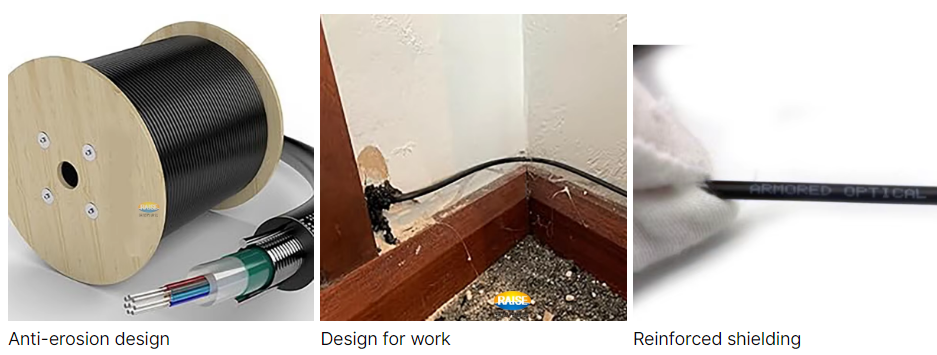

Outdoor & indoor use for tough environments

Supply Ability

Supply Ability：2000 Piece/Pieces per Day

Manufacturing Technique

Packing & Delivery

Packaging & Shipping

In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
