LC to LC OM3 OM4 Multimode OFNP Fiber Patch Cable 1M 2M 3M | Reversible Polarity LC Uniboot for FTTx Network
Products Description
50/125μm OM3/OM4 Multimode LC/Uniboot-LC/Uniboot Bend Insensitive 2mm Fiber Optic Cable
* ✅【50% Space-Saving Two Fibers in One Boot】:OM4 LC to LC duplex .Uniboot single jacket patch cables make patch panel cable managements considerably easier. Special for high-density cabling application.
* ✅【Low Signal Loss】: This OM4 Fiber Cable is designed to minimize signal loss,and high reliability ,insertion loss of ≤0.3dB and return loss of ≥50dB. Ensuring efficient and reliable data transmission.
* ✅【Bend Insensitive】: Uniboot fiber optic jumpers use bend insensitive fibers that are insensitive to bending and twisting. In situations where space is limited or complex wiring is required, this design can reduce optical loss, improve signal quality, and thus improve the overall system performance. The minimum bending radius of Uniboot OM4 multi-mode fiber LC to LC is 10mm.
* ✅【High-Speed Data Transmission】The LC/UPC TO LC/UPC OM4 fiber optic internet cable ensures flawless optical signal transmission with no loss, it is special for meeting the demands of high-performance network extensions for fiber optic ethernet cable.
* ✅【Easy Polarity Changing】: This OM4 fiber lc to lc cable ,polarity changes can be made in the field quickly (Just by switching the A and B positions in the connector for each fiber), without using the tools, to correct fiber mapping polarity. Without damage to fiber.
* ✅【Low Signal Loss】: This OM4 Fiber Cable is designed to minimize signal loss,and high reliability ,insertion loss of ≤0.3dB and return loss of ≥50dB. Ensuring efficient and reliable data transmission.
* ✅【Bend Insensitive】: Uniboot fiber optic jumpers use bend insensitive fibers that are insensitive to bending and twisting. In situations where space is limited or complex wiring is required, this design can reduce optical loss, improve signal quality, and thus improve the overall system performance. The minimum bending radius of Uniboot OM4 multi-mode fiber LC to LC is 10mm.
* ✅【High-Speed Data Transmission】The LC/UPC TO LC/UPC OM4 fiber optic internet cable ensures flawless optical signal transmission with no loss, it is special for meeting the demands of high-performance network extensions for fiber optic ethernet cable.
* ✅【Easy Polarity Changing】: This OM4 fiber lc to lc cable ,polarity changes can be made in the field quickly (Just by switching the A and B positions in the connector for each fiber), without using the tools, to correct fiber mapping polarity. Without damage to fiber.
|
Model Number:
|
Fiber Optic Patch Cord
|
Connector Type:
|
LC/Uniboot to LC/Uniboot Duplex
|
|
Use:
|
FTTH/FTTB/FTTx
|
Length:
|
Customized
|
|
Place of Origin:
|
Guangdong, China
|
Brand:
|
OEM/ODM
|
|
Network:
|
Wireless Lan, Wired LAN, 4 G, Wi-Fi, 3 G
|
Fiber Type:
|
OM4 ...Customized
|
|
Min. Bend Radius
(Fiber Core) |
10mm
|
Min. Bend Radius
(Fiber Cable) |
20/10D (Dynamic/Static)
|
|
Fiber count:
|
Duplex
|
Polish:
|
UPC/APC/PC
|
|
Insertion loss:
|
≤0.3dB(UPC/APC/PC)
|
Return loss:
|
UPC/PC ≥30dB(Multimode)
UPC/PC≥50dB APC≥60dB(Singlemode)
|
|
Jacket:
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
Jacket Color:
|
Auqa...Customized
|
|
Cable Diameter
|
0.9mm/1.2mm/1.6mm/2.0mm/3.0mm
|
Laying Method:
|
Indoor cabling
|
|
Operating Temperature (° C)
|
-20 ~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|
|
Exchangeability
|
≤ 0.2dB
|
||
|
Cable Assemblies
|
Pigtail/Simplex/Duplex/Fan-out Patch cord
|
||
Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.
Our 10Gb LC/Uniboot to LC/Uniboot Fiber Optic Cables
Superior Quality Material
* PVC/LSZH plastic, shiny,tough,environmental protection.
* Aramidl cable,non-toxic,fire retardant,core protection and low smoke.
* PBT plastic materials and fine copper,durable,high temperature resistant.
* Aramidl cable,non-toxic,fire retardant,core protection and low smoke.
* PBT plastic materials and fine copper,durable,high temperature resistant.

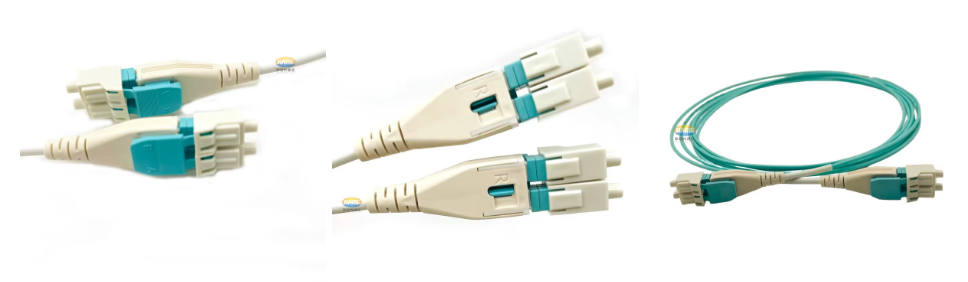

LC/Uniboot to LC/Uniboot Connector
* High-precision Ceramic ferrule, Low insertion loss, large return loss,strong stability and interchangeability.
* Protective Dust Cap, prevent the fiber line and ensure the end of the plug will not damage the product parameters
* Protective Dust Cap, prevent the fiber line and ensure the end of the plug will not damage the product parameters

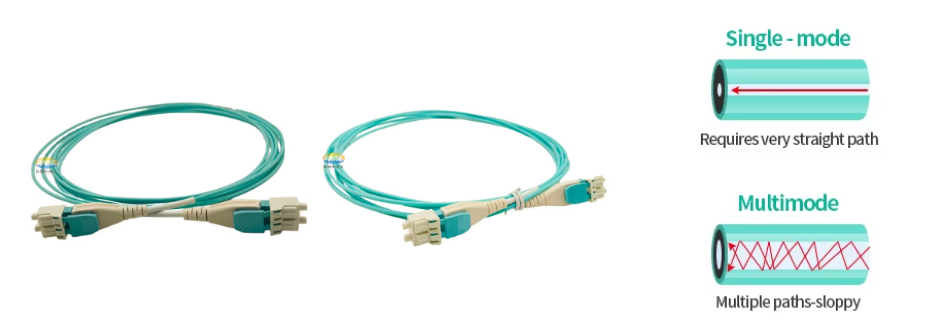

Multi-mode
* Light travels way: Light travels along a straight line without reflection. Multi-mode fiber carry multi-channel optical signal
transmission.
* Core size: the core size of multi-mode cable is 50.0 micron while a single module is 9.0 micron.
transmission.
* Core size: the core size of multi-mode cable is 50.0 micron while a single module is 9.0 micron.

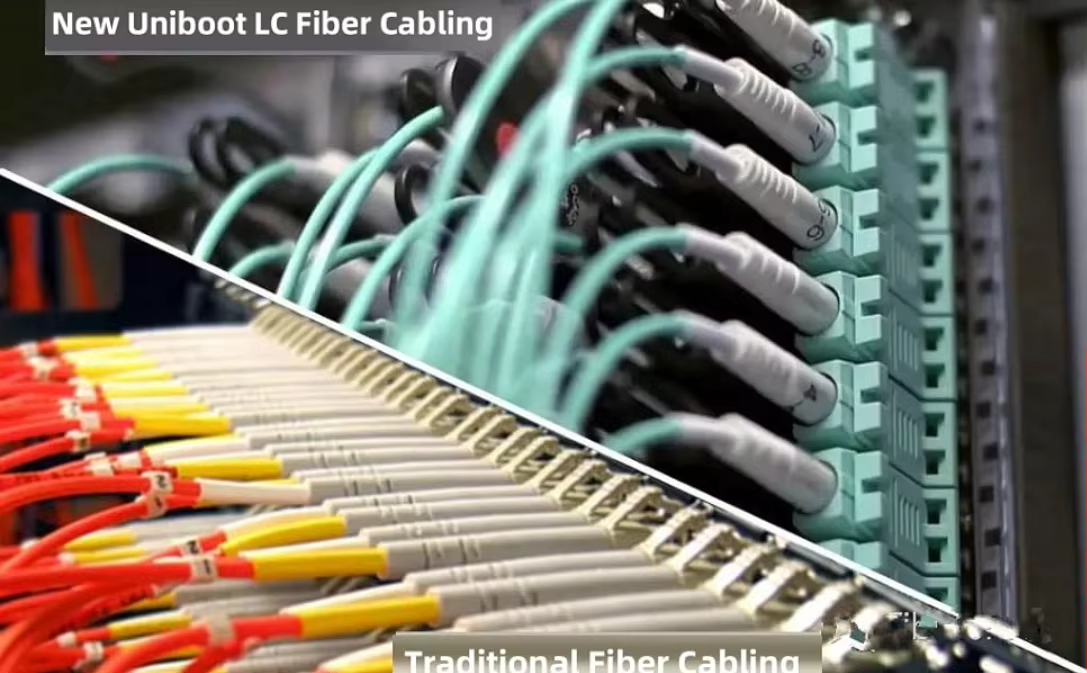

Uniboot LC Single Jacket Fiber Patch Cables Effectively Cuts Down 50% the Space-Saving Compared with the Traditional LC Fiber Duplex Patch cords.

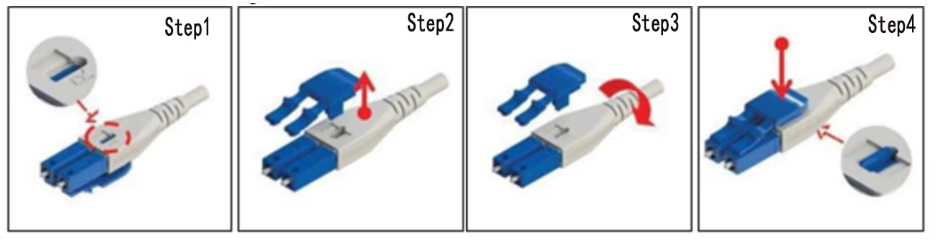

LC Push-Pull Polarity Reversible Connector - No tool needed
Step 1: Use your fingers to unlock the spring lock from the back
Step 2: Remove the spring lock from the integrated connector
Step 3: Rotate the component 180
Step 4: Push the spring lock back and lock it securely
Customization
- Cable printing Customized and Length Customized
- Cable Color Customized and Cable OD Customized(0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm)
- Boot Color & Length Customized
Application
Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, telecommunication network,CATV ,LAN and WAN ,FTTX ,Broadband network.
Supply Ability：2000 Piece/Pieces per Day
Manufacturing Technique
Our service
1. Advanced production and testing equipment.
2. Professional manufacturer. 100% Tested .
3. Fully compliant with IS0 9001:2008 quality management system .
4. Your company has rich experience in professional team .
5. Provide reliable solutions and satisfying services .
6. Careful attention to temperature services.
7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment.
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
