MPO to 6 LC Duplex OM5 10G Multimode Fiber Cable 12/24 Core for Data Center
Products Description
OM5 12 Fiber MPO/MTP Female to 4 Duplex LC/UPC 12"Fanout Trunk Cable MM 50/125 OFNR Method B
MPO/MTP jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MPO/MTP cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. They include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers that require quick infrastructure deployment with extended reach and want to maintain bandwidth throughout the infrastructure.
OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. They include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers that require quick infrastructure deployment with extended reach and want to maintain bandwidth throughout the infrastructure.
Product Paramenters
|
Connector Type
|
MPO/Female to 4 Duplex LC/UPC
|
Fiber Type
|
OM5 50/125μm
|
|
Wavelength
|
850/1300nm
|
Fiber Count
|
12 Fibers (Base-12)
|
|
40G Ethernet Distance
|
440m at 850nm
|
100G Ethernet Distance
|
150m at 850nm
|
|
Polish Type
|
UPC to UPC
|
Minimum Bend Radius
|
7.5mm
|
|
MTP Connector Count
|
1
|
LC Connector Count
|
4
|
|
MTP Connector IL
|
0.20dB Max
|
LC Connector IL
|
≤0.35dB
|
|
MTP Connector RL
|
≥20dB
|
LC Connector RL
|
≥20dB
|
|
Attenuation at 850nm
|
≤3.5dB/km
|
Attenuation at 1300nm
|
≤3.5dB/km
|
|
Jacket OD
|
2.0mm
|
Cable Jacket
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
|
Polarity
|
Type B
|
||
|
Installation Tensile Load
|
66 N
|
||
|
Tensile Strength (Long/Short Term)
|
80N/240N
|
||
|
Operating Temperature (° C)
|
-10~ + 70
|
||
|
Storage Temperature (° C)
|
-40 ~ +85
|
||
|
Package
|
1PC/bag
|
||
Features:
Used to connect equipment that utilizes MPO style and LC connectors and OM5 50/125 Multimode cabling
Double jacket sheath further protects network connections
Double jackets with greater pressure resistance protect the fiber core and increase the strength and durability of the fiber.
Excellent workmanship ensures stable transmission
MTP/LC cables provide state-of-the-art multi-fiber and mechanical properties.

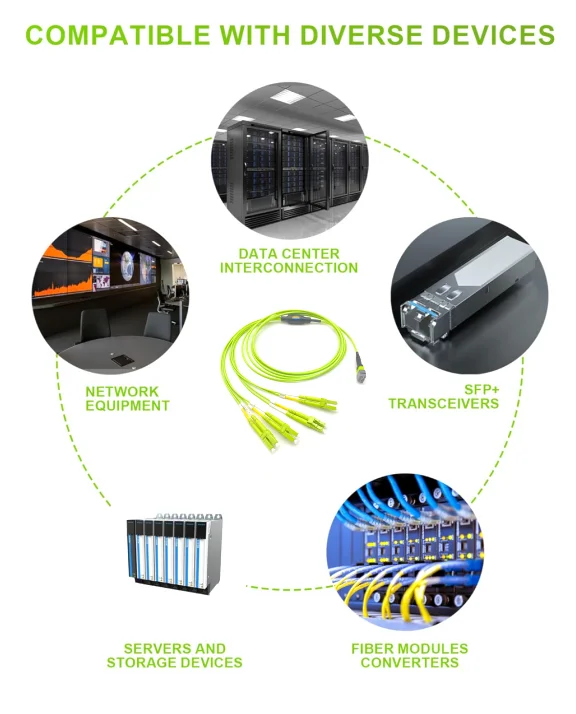

Application
.
Packing & Delivery
Packaging & Shipping
In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
