MPO to LC 16 Fiber OS2 9/125 Singlemode Breakout Cable for Data Center
Products Description
16 Cores MPO Female to 8 x Duplex LC/UPC 9/125 Sibglemode Breakout Fiber Cable
MPO breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.
Product Paramenters
|
Connector Type
|
MPO/Female to LC
|
Fiber Type
|
9/125 OS1/OS2 SM
|
|
Wavelength
|
1310/1550nm
|
Fiber Count
|
8 cores
|
|
Polish Type
|
APC/UPC
|
Wavelength
|
1310/1550nm
|
|
Attenuation at 1310nm
|
≤0.32dB/km
|
Attenuation at 1550nm
|
≤0.18dB/km
|
|
Jacket OD
|
2.0mm 3.0mm
|
Cable Jacket
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
|
MPO Insertion Losss(dB) 1310/1550nm
|
Standard
|
≤0.50dB
|
|
|
Elite Low Loss
|
≤0.35dB
|
||
|
MPO Return Loss(dB)
|
UPC≥50dB; APC ≥60dB
|
||
|
LC Insertion Losss(dB) 1310/1550nm
|
≤0.50dB
|
||
|
LC Return Loss(dB)
|
UPC≥50dB; APC ≥60dB
|
||
|
Installation Tensile Load
|
66 N
|
||
|
Tensile Strength (Long/Short Term)
|
80N/240N
|
||
|
Operating Temperature (° C)
|
-10~ + 70
|
||
|
Storage Temperature (° C)
|
-40 ~ +85
|
||
|
Package
|
1PC/bag
|
||
Features: Used to connect equipment that utilizes MPO-LC style connectors and 9/125 Singlemode cabling
● Type A, Type B and Type C Polarity Options available
● Each cable 100% tested for low insertion loss and back reflection
● Custom lengths and cable colors available
● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options
● Reduced Insertion Loss by up to 50%
● High Durability
● High Temperature Stability
● Good Exchangeability
● High Density design cuts down on installation costs
Fiber Polarity Guidance
12 Fibers MTP/MPO Fiber Polarity
24 Fibers MTP/MPO Fiber Polarity

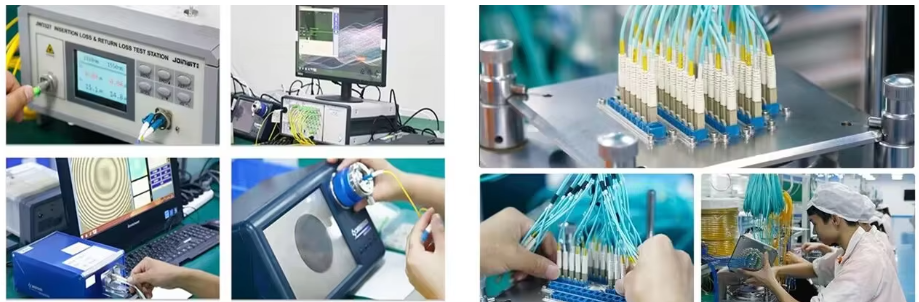

Manufacturing Technique
FAQ
Q1. Do you provide OEM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
