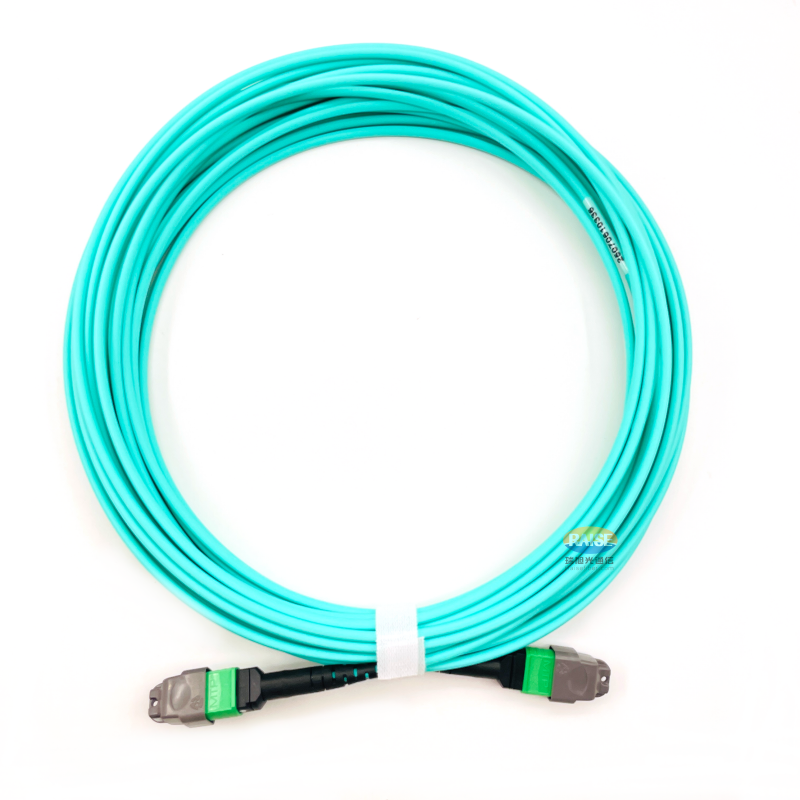

MTP female to MTP female Fiber Optic Cable 12 Core OM3 SM/MM for 3G/4G/5G Network Data Center Patch Cord Internet Communication Equipment
Product Description
MPO or MTP terminated cables are widely used in high density cabling environments like data centers. Traditional, tight-buffered multi-fibre cable needs to have each fiber individually terminated by a skilled technician. MPO cable which carries multiple fibers, comes pre-terminated. Factory terminated MPO / MTP connectors commonly have either 8fiber, 12 fiber or 24 fiber array.
MPO is a fiber connector type, while MTP is a registered trademark of an MPO connector manufactured by US Conec. All MTPs are MPOs but not all MPOs are MTPs.
MTP is a brand name for an MPO connector manufactured by US Conec. It conforms to MPO specs. MTP stands for “Multi-fiber Termination Push-on” connector. MTP connectors are engineered for high mechanical and optical specs. Some of these features are covered by patents. To the naked eye, there is very little difference between the two connectors. In cabling they are compatible with each other.
The MPO/MTP connector can be either male or female. You can tell the male connector by the two alignment pins protruding from the end of the ferrule. MPO/MTP female connectors will have holes in the ferrule to accept the alignment pins from the male connector.
MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO/MTP connectors and Corning fiber or YOFC fiber, it is optimized for 10/40/100G high-density data center applications.
Product Specification
| Connector A | MTP | Connector B | MTP |
| Fiber Mode | OM3 50/125μm...Customized | Wavelength | 850/1300nm |
| Trunk Diameter | 3.0mm-17.3mm | Polish Type | UPC to UPC |
| Gender/Pin Type | Female/Male | Polarity Type | Type A /Type B/Type C |
| Insertion Loss | ≤0.35dB | Return Loss | ≥30dB |
| Cable jacket | LSZH/PVC/OFNR/OFNP | Cable Color | Orange, Yellow, Aqua, Purple, Violet Or Customized |
| Fiber Count |
8Fiber/12Fiber/24Fiber/36Fiber/48Fiber/72Fiber/96Fiber/144Fiber Or Customized |
||
Product Features
● Used to connect equipment that utilizes MTP style connectors and OM3 10 Gigabit 50/125 Multimode cabling
● Type A, Type B and Type C Polarity Options available
● Each cable 100% tested for low insertion loss and back reflection
● Custom lengths and cable colors available
● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH)
Rated options
● Reduced Insertion Loss by up to 50%
● High Durability
● High Temperature Stability
● Good Exchangeability
● High Density design cuts down on installation costs
● Designed for 40Gig QSFP systems
MPO Connector Type

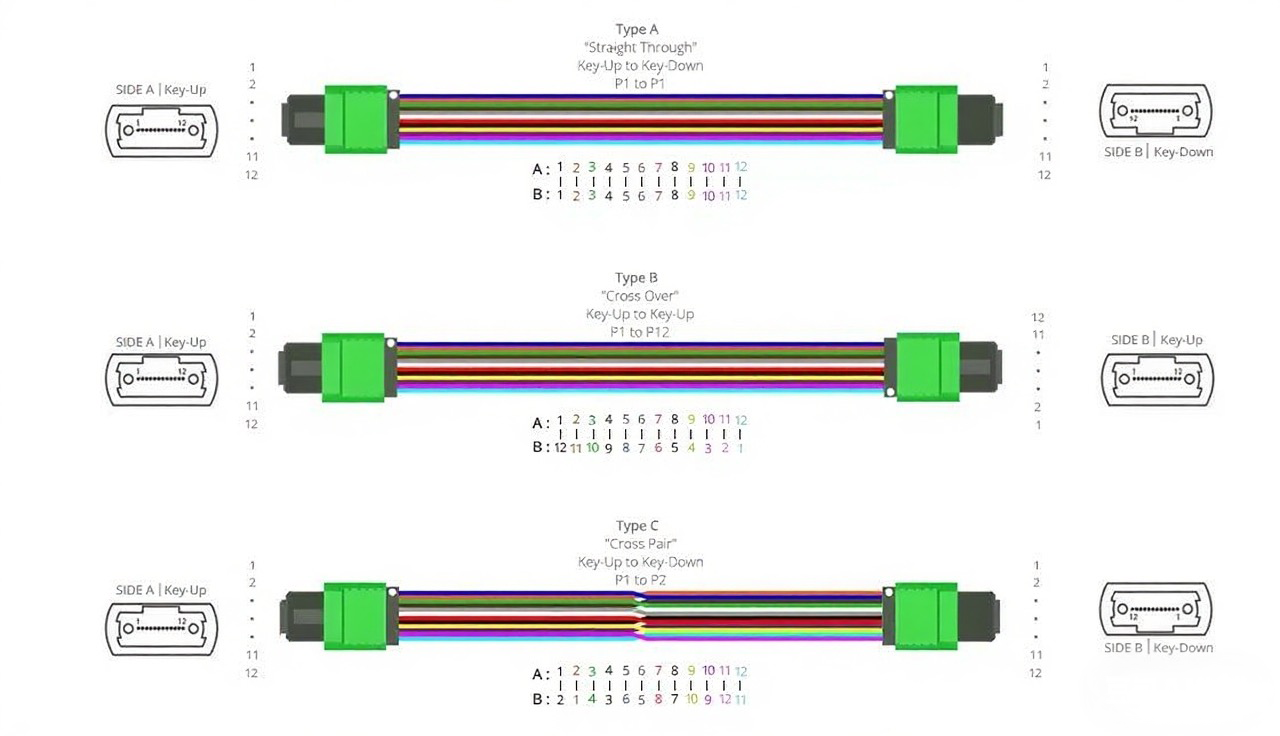

Polarity Type
Factory Real Pictures
