MTP to MTP 12 Fiber OS2 Singlemode Patch Cord PVC LSZH for Fiber Equipment
Products Description
MTP/APC to MTP/APC Female Male 12 Fibers Single Mode OS2 Fiber Optic Patch Cord
MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.
Product Paramenters
|
Connector A
|
MTP Female/Male
|
Connector b
|
MTP Female/Male
|
|
Fiber Mode
|
9/125 SM
|
Wavelength
|
1310/1550nm
|
|
Fiber Grade
|
G.657.A1 (Compatible with G.652.D)
|
Polish Type
|
APC
|
|
Minimum Bend Radius
|
10mm
|
Cable Length
|
1m, 2m 3m ...customized
|
|
Insertion Loss (dB) 850/1300nm
|
Standard Loss ≤0.50
Elite Low Loss ≤0.35
|
Return Loss
|
APC ≥60dB
UPC ≥50dB
|
|
Attenuation at 1310nm
|
≤0.32dB/km
|
Attenuation at 1310nm
|
≤0.18dB/km
|
|
Jacket OD
|
3.0mm
|
Cable Jacket
|
OFNR(PVC)/LSZH/Plenum(OFNP)
|
|
Installation Tensile Load
|
66 N
|
Tensile Strength (Long/Short Term)
|
80N/240N
|
|
Operating Temperature (° C)
|
-10~ + 70
|
Storage Temperature (° C)
|
-40 ~ +85
|

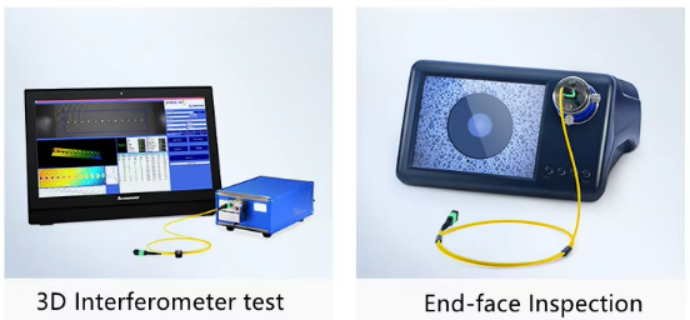

Test Assured Program
3D interferometer provides verification of MTP/MPO polishing process and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
Features: Used to connect equipment that utilizes MTP style connectors and Single Mode OS1/OS2 9/125μm Cabling
● Type A, Type B and Type C Polarity Options available.
● Each cable 100% tested for low insertion loss and back reflection.
● Custom lengths and cable colors available.
● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options.
● Reduced Insertion Loss by up to 50%.
● High Durability.
● High Temperature Stability.
● Good Exchangeability.
● High Density design cuts down on installation costs.
● Designed for 40Gig QSFP systems.
MPO Connector Type
MPO connector can choose Male or Female

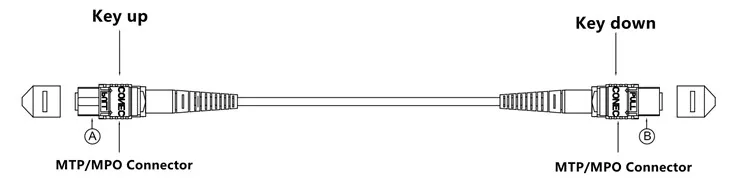

Fiber Polarity Guidance
12 Fibers MPO Fiber Polarity
24 Fibers MPO Fiber Polarity

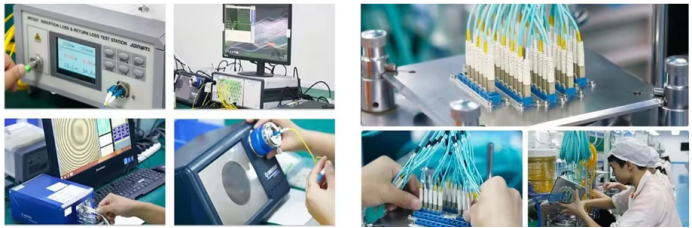

Manufacturing Technique
FAQ
Q1. Do you provide OEM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delivery, ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC, TT, DP, DA, Paypal, Western Union, Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
