12 Strand MPO to MPO OM5 Multimode 50/125 Fiber Optic Cable OFNR | High-Speed Patch Cord for 4G/5G/WiFi Networks
Products Description

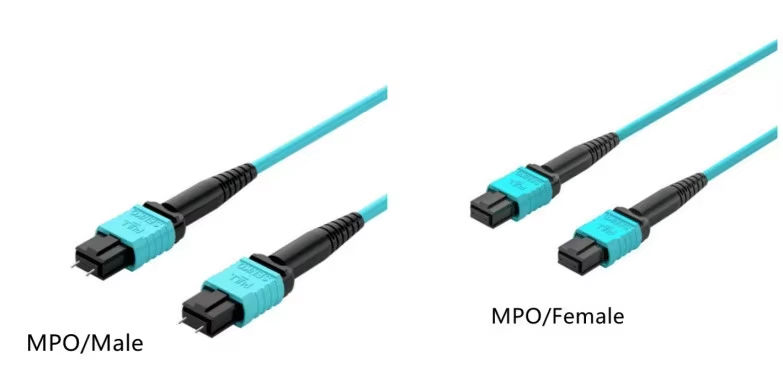

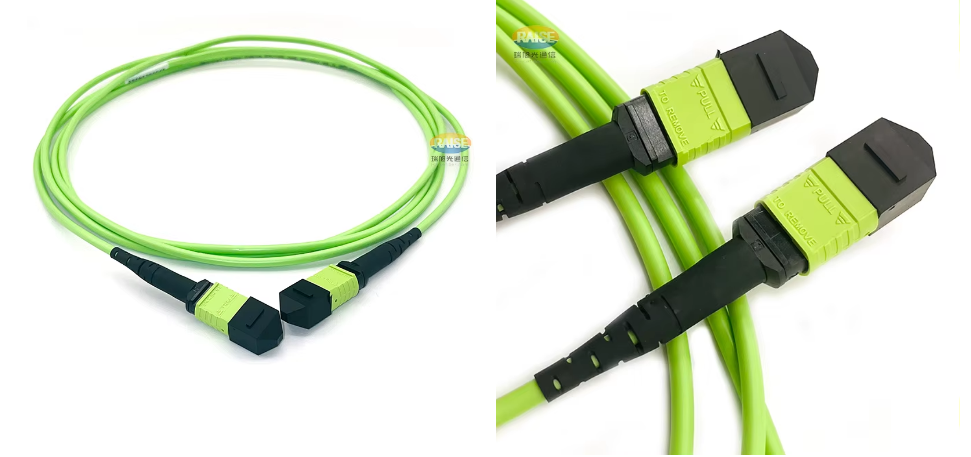

12-Strand MPO Female to MPO Female 50/125 Multimode Plenum Fiber Cable
MPO conversion cable is designed to provide a more flexible multi-fiber cabling system based on MPO products. Unlike MPO harness cable, MPO conversion cables are terminated with MPO connectors on both ends and can provide more possibilities for the existing 8-fiber cabling system.
Product Paramenters
|
Connector Type
|
MPO to MPO Female
|
Fiber Type
|

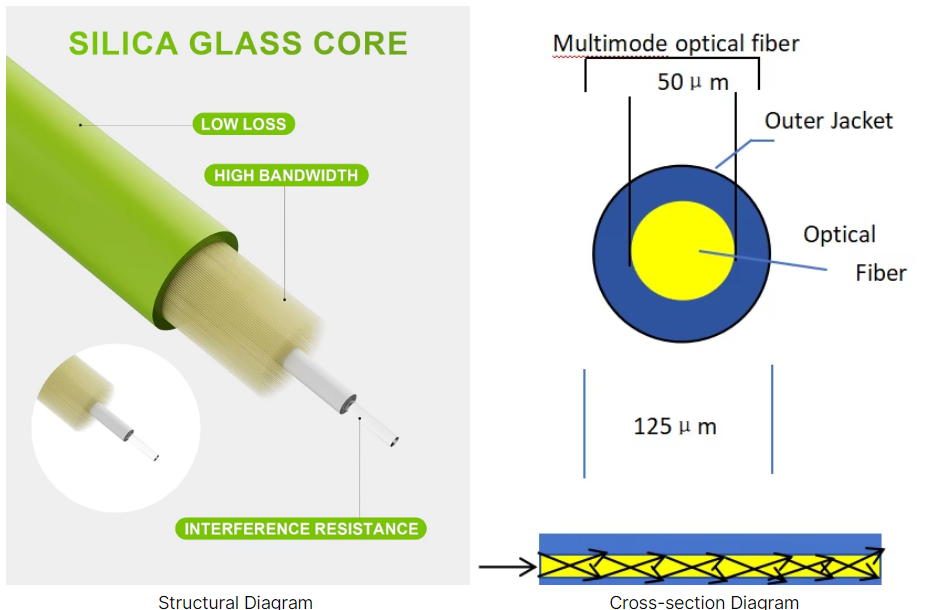

50/125 μM
|
|
Wavelength
|
850/1300nm
|
Fiber Count
|
12 Fibers
|
|
Polish Type
|
UPC
|
Minimum Bend Radius
|
10mm
|
|
MPO Connector Count
|
4
|
||
|
MPO Connector IL
|
0.20dB Max
|
MTP Connector RL
|
≥35dB
|
|
Attenuation at 850nm
|
≤3.5dB/km
|
Attenuation at 1300nm
|
≤3.5dB/km
|
|
Jacket OD
|
3mm
|
Cable Jacket
|
PVC/OFNR/LSZH/Plenum(OFNP)
|
|
Polarity
|
Type B
|
||
|
Installation Tensile Load
|
66 N
|
||
|
Tensile Strength (Long/Short Term)
|
200N/660N
|
||
|
Operating Temperature (° C)
|
-10~ + 70
|
||
|
Storage Temperature (° C)
|
-40 ~ +85
|
||
|
Package
|
1PC/bag
|
||
Features:
Double jacket sheath further protects network connections
Double jackets with greater pressure resistance protect the fiber core and increase the strength and durability of the fiber.
Excellent workmanship ensures stable transmission
MPO cables provide state-of-the-art multi-fiber and mechanical properties.
Application
Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, and network applications.
Packing & Delivery
Our service
1. Advanced production and testing equipment 2. Professional manufacturer. 100% Tested .
3. Fully compliant with IS0 9001:2008 quality management system .
4. Your company has rich experience in professional team.
5. Provide reliable solutions and satisfying services .
6. Careful attention to temperature services.
7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment.
3. Fully compliant with IS0 9001:2008 quality management system .
4. Your company has rich experience in professional team.
5. Provide reliable solutions and satisfying services .
6. Careful attention to temperature services.
7.Your specific inquiries can be provided within 24 hours of advanced production and testing equipment.
Supply Ability：1000 Piece/Pieces per Day
Manufacturing Technique
Packaging & Shipping
In order to ensure the safe arrival of your goods, I have multiple modes of transportation: sea and air. Sea freight will be longer than air freight, but air freight costs will be higher. The transportation method depends on your own choice.
